S224.NC25.D2 TI26
Inserts
Part number S224NC25D2TI26

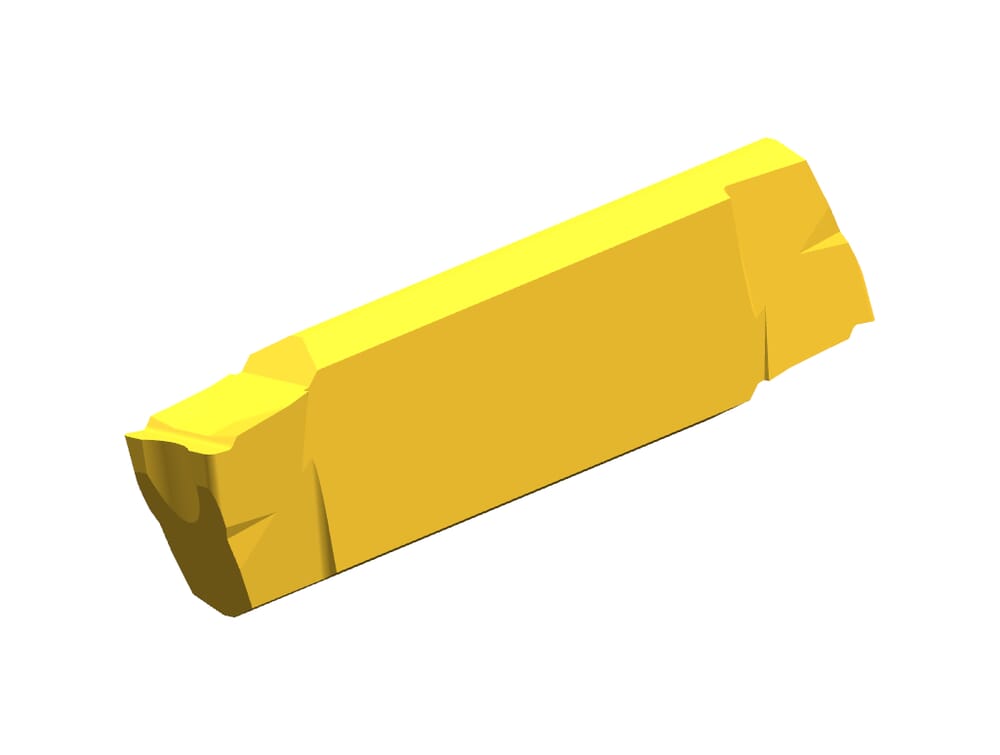

HORN Inserts S224.NC25.D2 TI26 for Turning
Please note:Technical instructions
Minimum groove width (wx)
3.6
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224020058N$$$$$
DIN_SSC
HORN-224020058N
Katalog_SSC
224028
Plating seat size (Größe)
2
Width of groove (w)
2.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S224NC25D2_20210629_064649078.DXF | Download |
| S224NC25D2_20230116_213818482.STP | Download |
| Download all files | |
