304.4545.20 IG35
Insert
Part number 304454520IG35

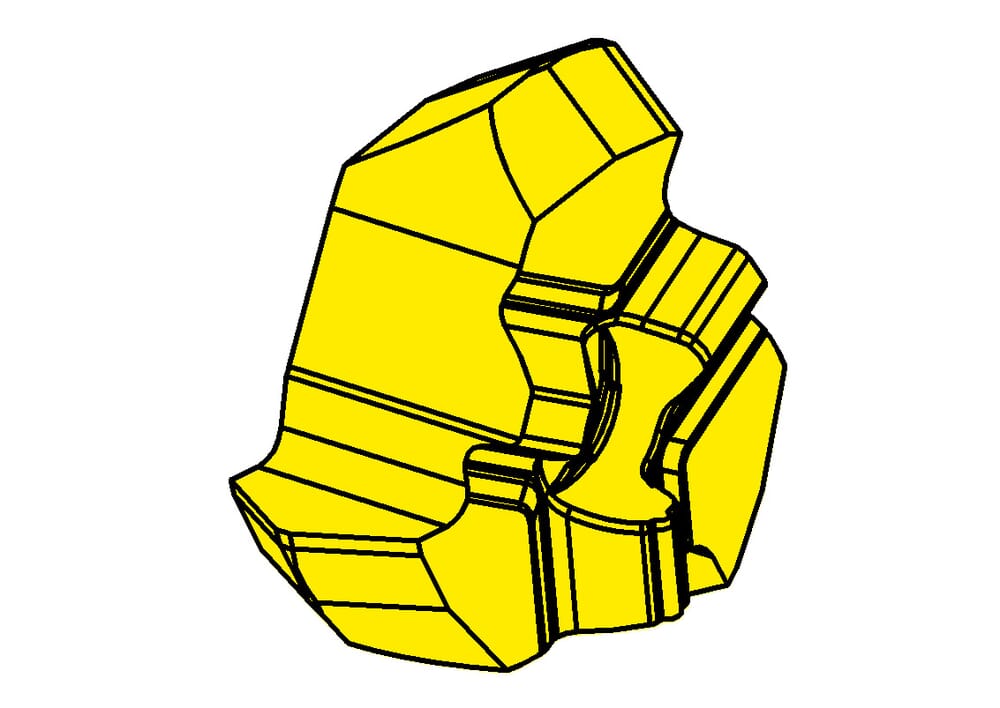

HORN Insert 304.4545.20 IG35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
7.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN304044$84R$$$$$
Katalog_SSC
304044R
Width of groove (w)
0.2
mm
Cutting insert width (s)
2.75
mm
Setting length (E)
1.4
mm
Chamfer size (tmax)
1
mm
Angle of chamfer (α)
45
°
Chamfer with maximum (b)
1
mm
| Downloads | |
|---|---|
| 304_4545_20_IG35-ISO.XML | Download |
| 304_4545_20_IG35-STP.STP | Download |
| 304_4545_20_IG35-DIN.XML | Download |
| 304_4545_20_IG35-DXF.DXF | Download |
| Download all files | |
