306.0815.02 TA45
Insert
Part number 306081502TA45

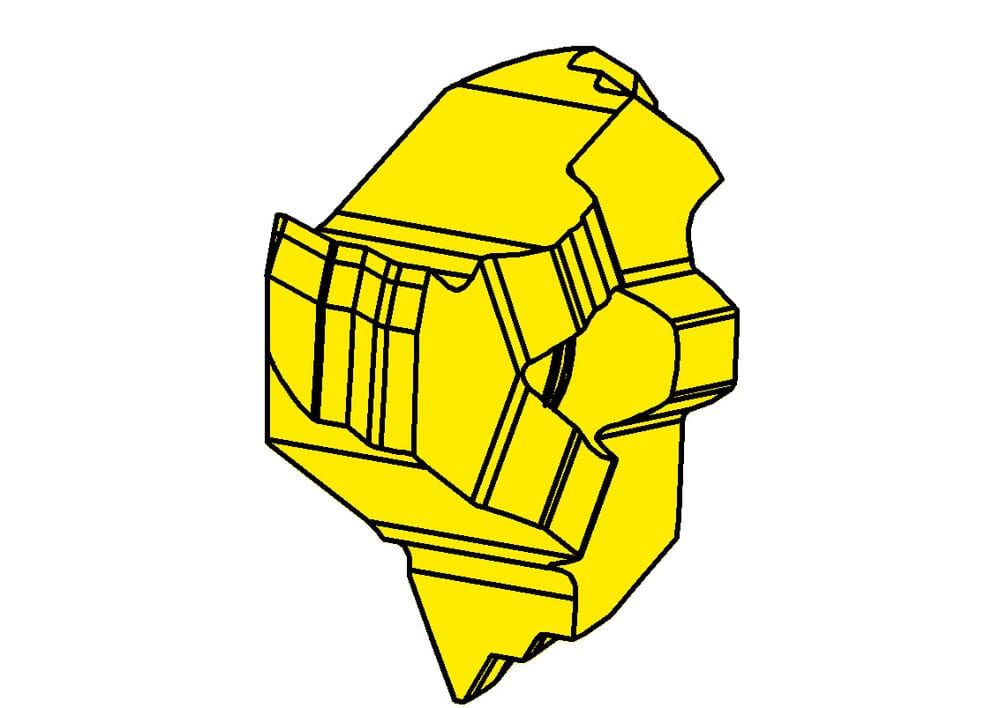

HORN Insert 306.0815.02 TA45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Setting length (E)
2.25
mm
Cutting insert height, Cutting insert thickness (s)
3.4
mm
Pitch (P)
1.5
mm
| Downloads | |
|---|---|
| 306_0815_02_TA45-DXF.DXF | Download |
| 306_0815_02_TA45-ISO.XML | Download |
| 306_0815_02_TA45-STP.STP | Download |
| 306_0815_02_TA45-DIN.XML | Download |
| Download all files | |
