306.4545.00 TI25
Inserts
Part number 306454500TI25

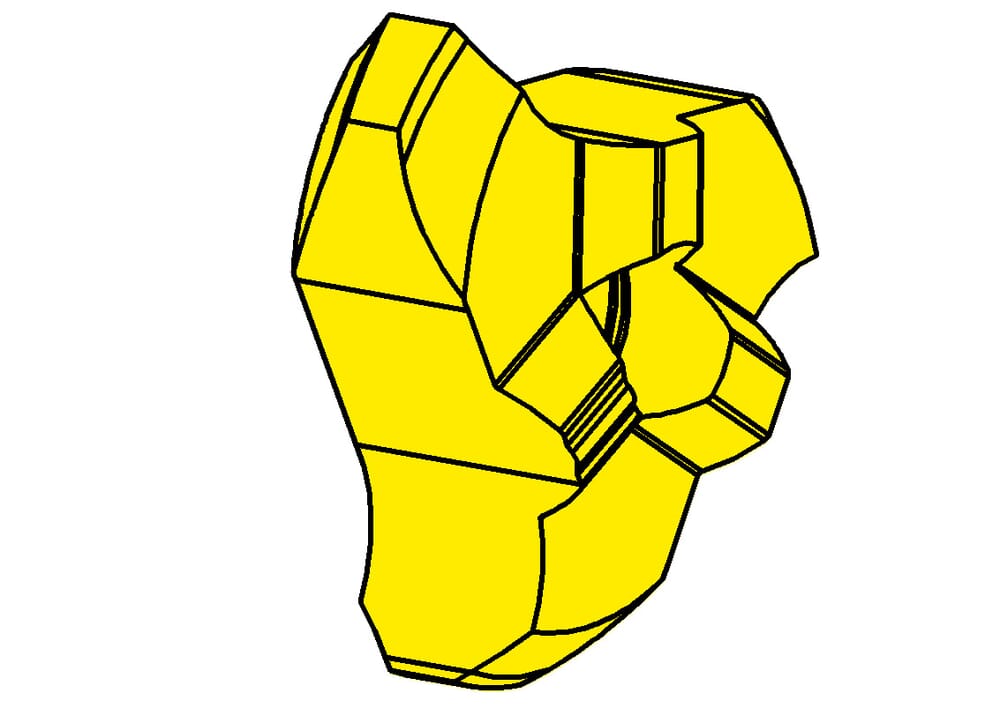

HORN Inserts 306.4545.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Width of groove (w)
1.2
mm
Form (Form)
A
Cutting insert thickness, setting length complete (s)
3.4
mm
Setting length (E)
1.1
mm
Chamfer size (tmax)
0.8
mm
| Downloads | |
|---|---|
| 306_4545_00_TI25-ISO.XML | Download |
| 306_4545_00_TI25-DXF.DXF | Download |
| 306_4545_00_TI25-STP.STP | Download |
| 306_4545_00_TI25-DIN.XML | Download |
| Download all files | |
