306.4593.20 TI25
insert
Part number 306459320TI25

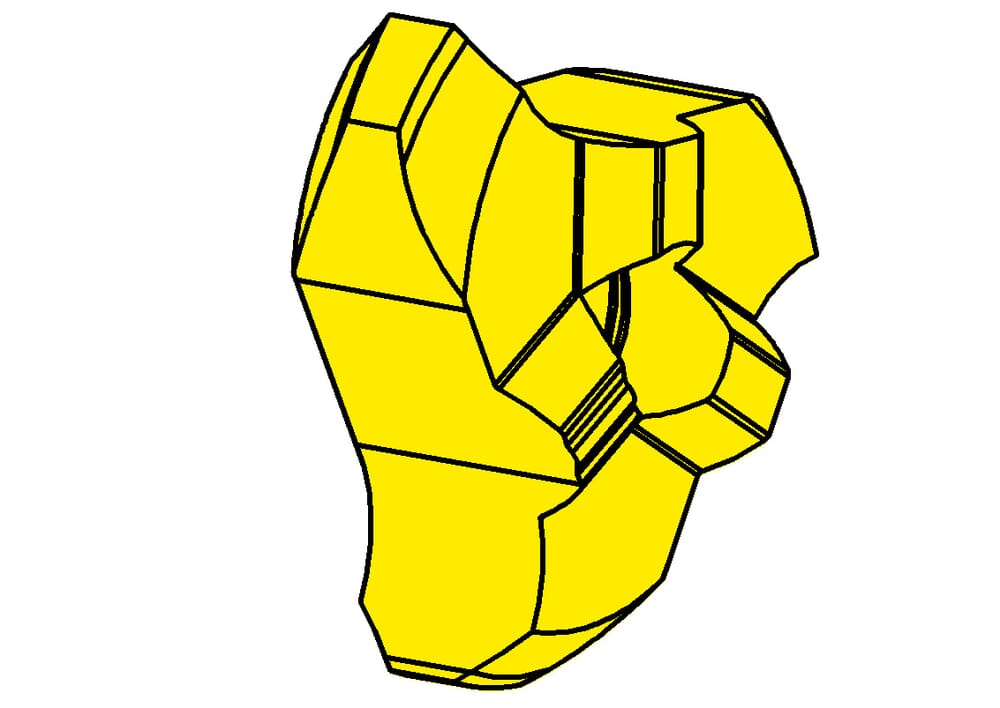

HORN insert 306.4593.20 TI25 for Milling
Please note:Technical instructions
DIN_SSC
HORN-30606084R
eclass-shortcut
21-18-20-11
Chamfer size (tmax)
1.4
mm
Setting length (E)
1.6
mm
Cutting insert thickness, setting length complete (s)
3.4
mm
Form (Form)
B
Width of groove (w)
0.2
mm
Katalog_SSC
306060R
ISO_SSC
HORN306060$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
9.3
mm
| Downloads | |
|---|---|
| 306459320.DXF | Download |
| 306459320_20230112_145519321.STP | Download |
| Download all files | |
