308.0011.22 TN35

Inserts

Part number 308001122TN35

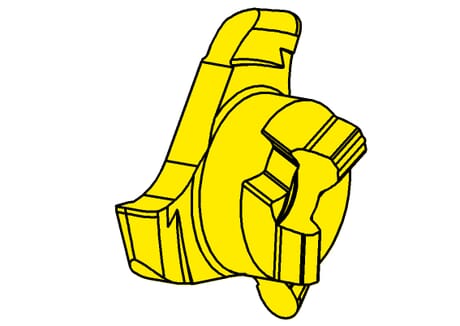

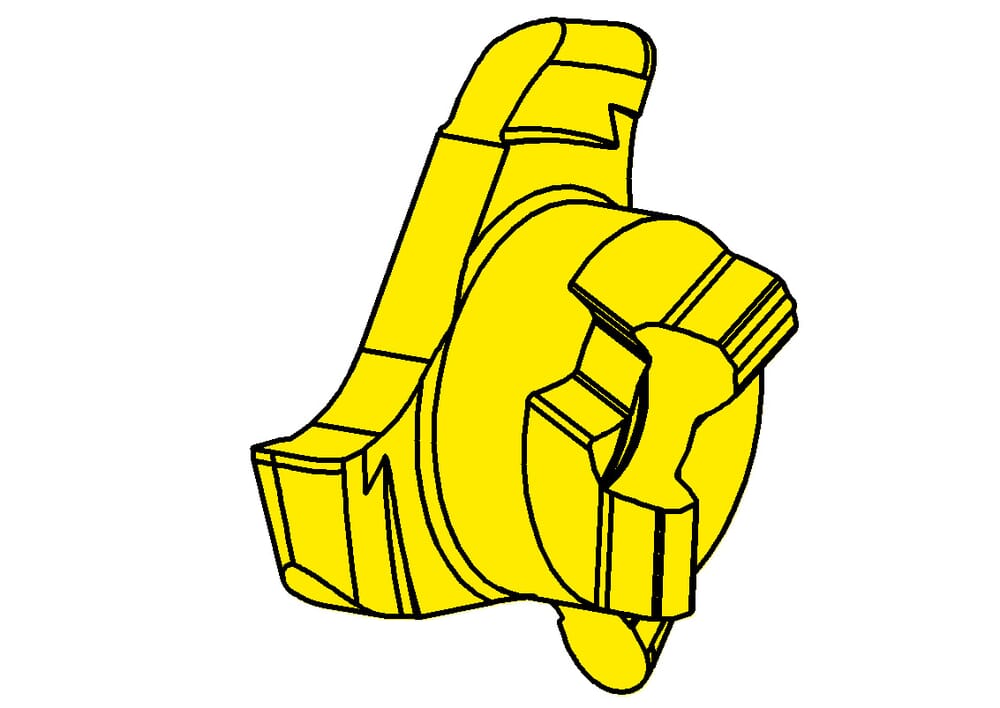

HORN Inserts 308.0011.22 TN35 for Milling

Cutting diameter (Ds)

15.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN308080$84R$$$$$

Katalog_SSC

308080R

plating-seat-size

Width of groove (w)

2.2 mm

Maximum milling depth/ depth of groove (tmax)

3.5 mm

Cutting insert thickness, setting length complete (s)

4.5 mm

Radius, full-radius (r)

1.1 mm
