311.4545.20 TI25
insert
Part number 311454520TI25

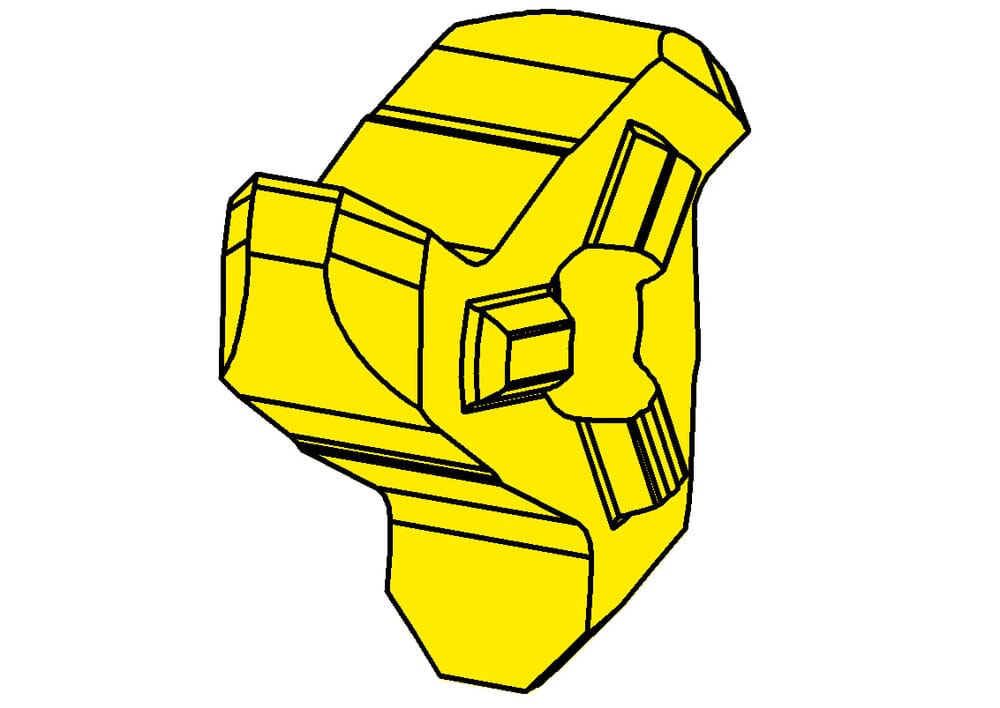

HORN insert 311.4545.20 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Width of groove (w)
0.2
mm
Form (Form)
B
Cutting insert thickness, setting length complete (s)
5.95
mm
Setting length (E)
2.95
mm
Chamfer size (tmax)
2.5
mm
| Downloads | |
|---|---|
| 311_4545_20_TI25-ISO.XML | Download |
| 311_4545_20_TI25-DIN.XML | Download |
| 311_4545_20_TI25-DXF.DXF | Download |
| 311_4545_20_TI25-STP.STP | Download |
| Download all files | |
