311.4545.20 TN35
Inserts
Part number 311454520TN35

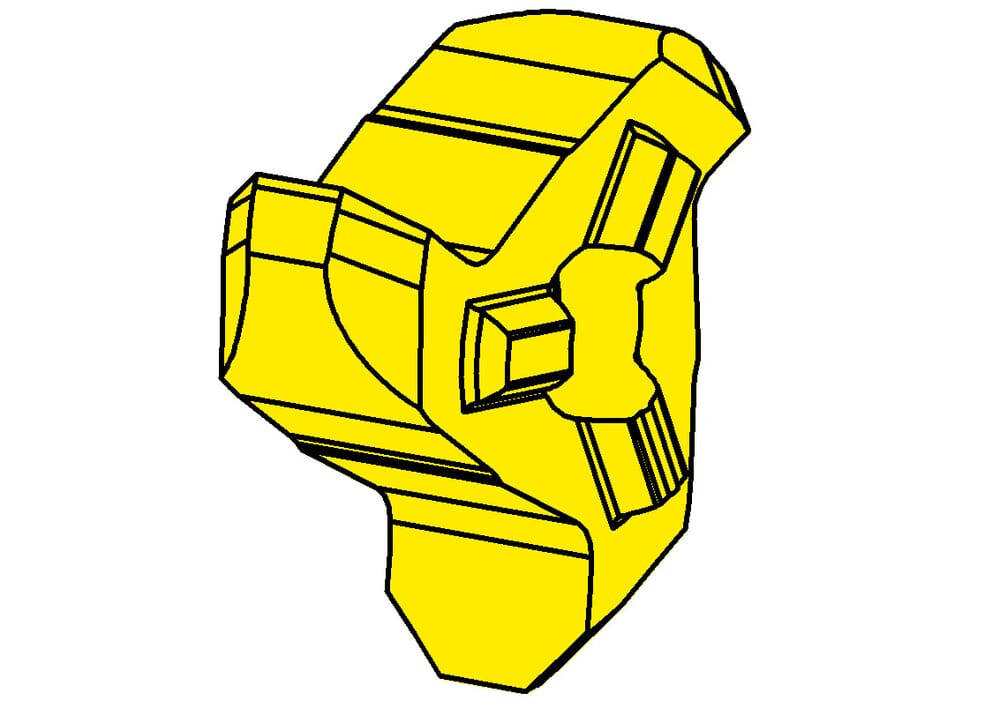

HORN Inserts 311.4545.20 TN35 for Milling
Please note:Technical instructions
DIN_SSC
HORN31109084R
eclass-shortcut
21-18-20-11
Chamfer size (tmax)
2.5
mm
Setting length (E)
2.95
mm
Cutting insert thickness, setting length complete (s)
5.95
mm
Form (Form)
B
Width of groove (w)
0.2
mm
Katalog_SSC
311090R
ISO_SSC
HORN311090$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
15
mm
| Downloads | |
|---|---|
| 311454520_20210625_154207833.DXF | Download |
| 311454520_20210630_093122039.STP | Download |
| Download all files | |
