313.0005.10 EG55
Insert
Part number 313000510EG55

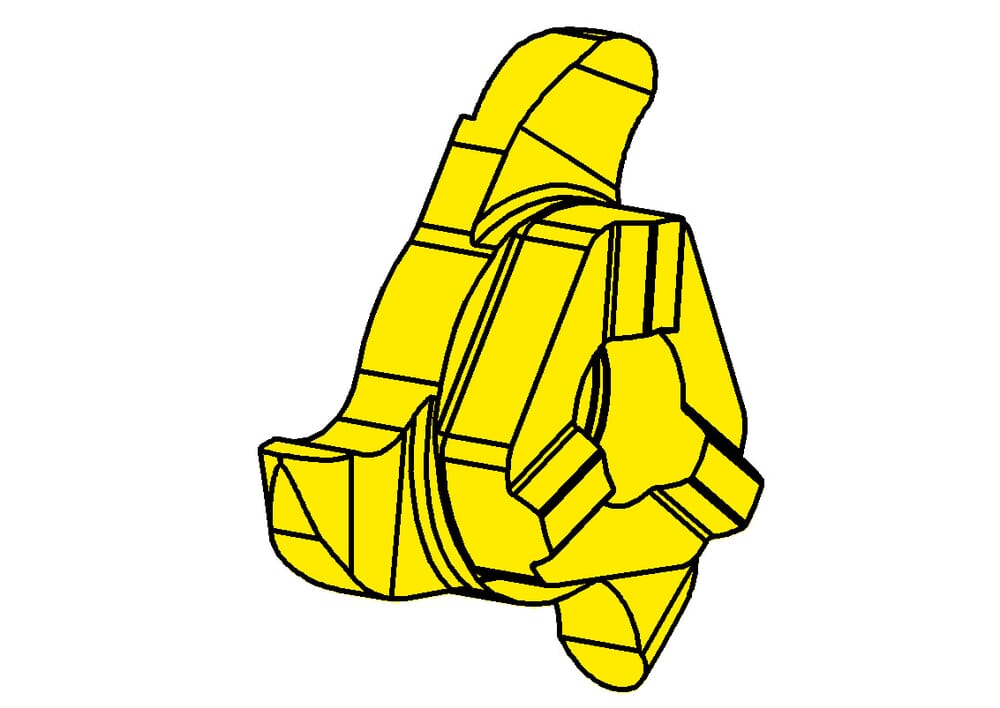

HORN Insert 313.0005.10 EG55 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Radius, full-radius (r)
0.5
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 313_0005_10_EG55-DXF.DXF | Download |
| 313_0005_10_EG55-ISO.XML | Download |
| 313_0005_10_EG55-STP.STP | Download |
| 313_0005_10_EG55-DIN.XML | Download |
| Download all files | |
