313.0100.1.00 TN35
Inserts
Part number 3130100100TN35

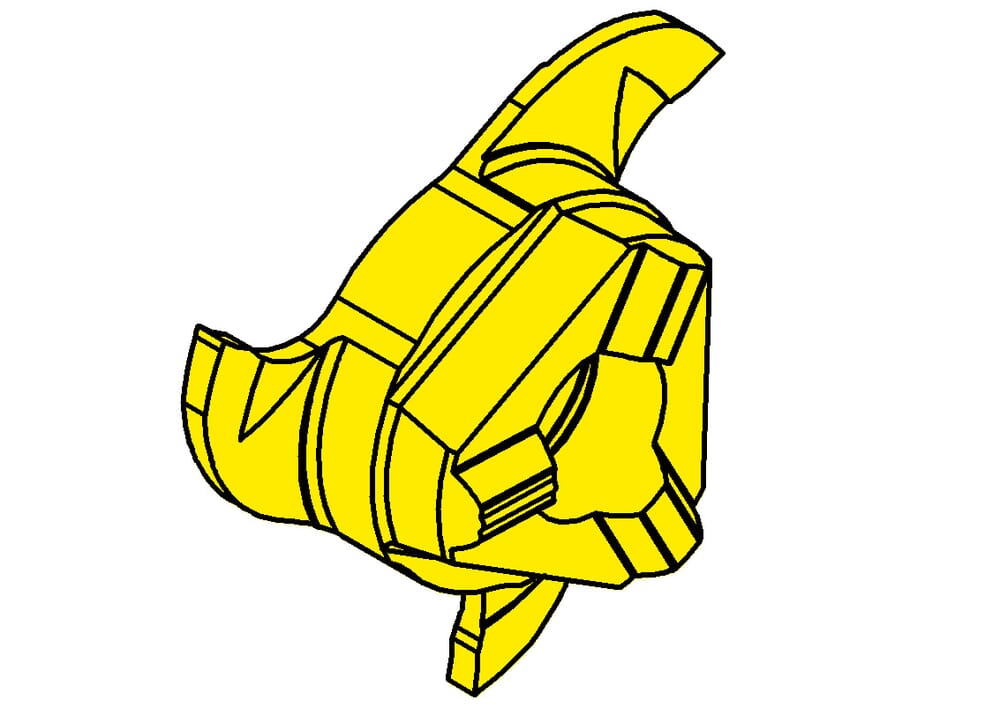

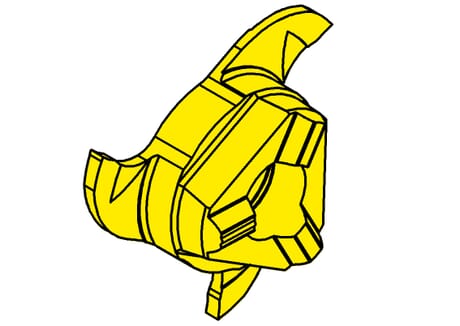

HORN Inserts 313.0100.1.00 TN35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 3130100100_20210625_134938176.DXF | Download |
| 3130100100_20230112_141555810.STP | Download |
| Download all files | |
