313.1105.30 TN35

Inserts

Part number 313110530TN35

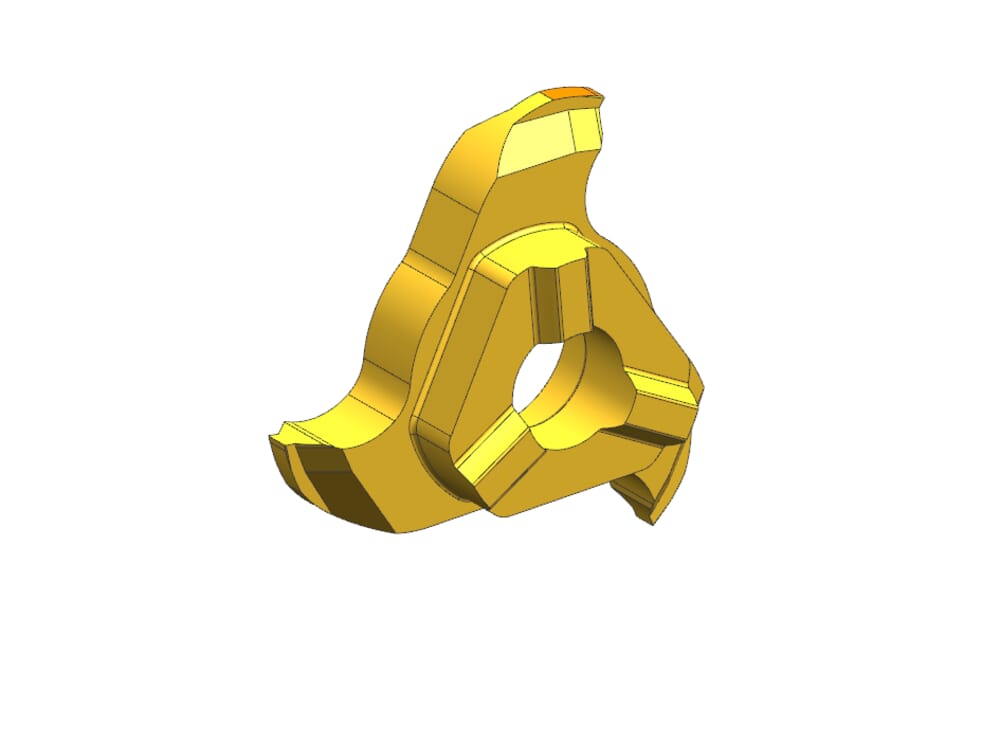

HORN Inserts 313.1105.30 TN35 for Milling

Nominal range (Nw)

1.1 mm

eclass-shortcut

21-18-20-11

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.07 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting diameter (Ds)

21.7 mm

Milling depth without NAKF (t1)

0.47 mm

Maximum milling depth/ depth of groove (tmax)

0.5 mm

Width of groove (w)

1.21 mm

Katalog_SSC

313113R

ISO_SSC

HORN313113$84R$$$$$

Number of teeth (Z)

3 St.
