313.1219.00 AS45
insert
Part number 313121900AS45

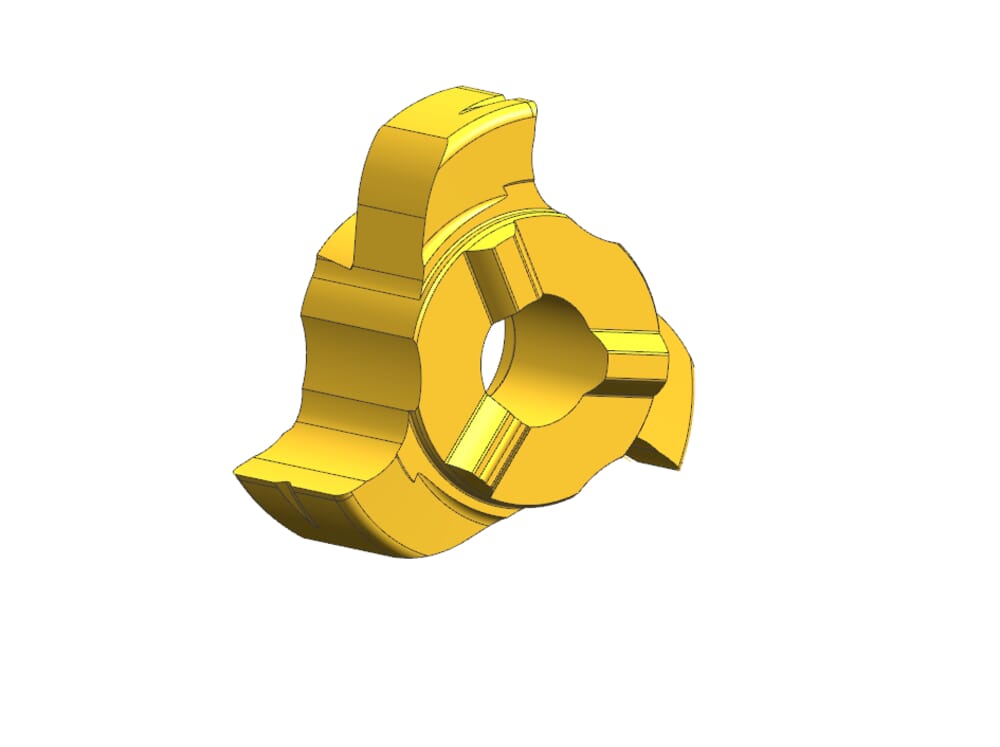

HORN insert 313.1219.00 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
20
mm
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
8.2
mm
Cutting insert thickness, setting length complete (s)
8.7
mm
Corner radius top (r1)
0.5
mm
Corner radius bottom (r2)
0.8
mm
Size of groove (a)
12
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 313121900_20210629_145311613.DXF | Download |
| 313121900_20230112_143019875.STP | Download |
| Download all files | |
