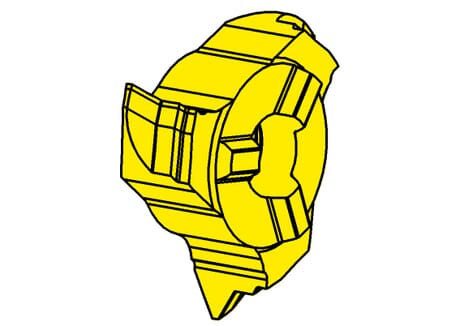

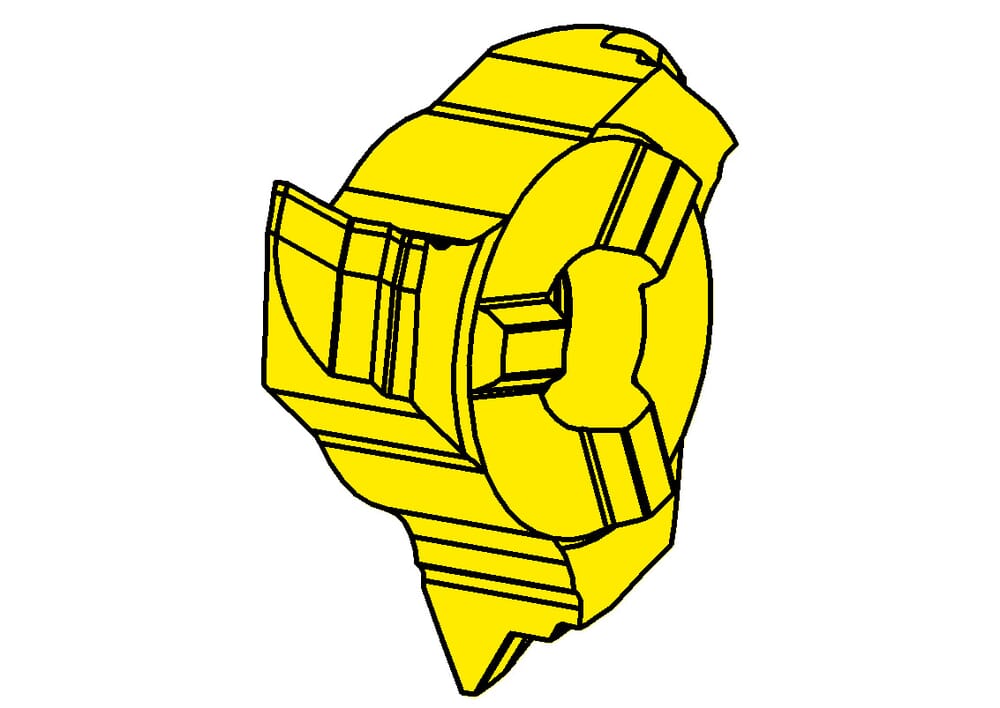

313.2445.02 AS45
insert
Part number 313244502AS45
HORN insert 313.2445.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Setting length (E)
3.8
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
Pitch (P)
4.5
mm
| Downloads | |
|---|---|
| 313244502.DXF | Download |
| 313244502_20230112_143304154.STP | Download |
| Download all files | |
