313.4545.30.00 TA45
Insert
Part number 31345453000TA45

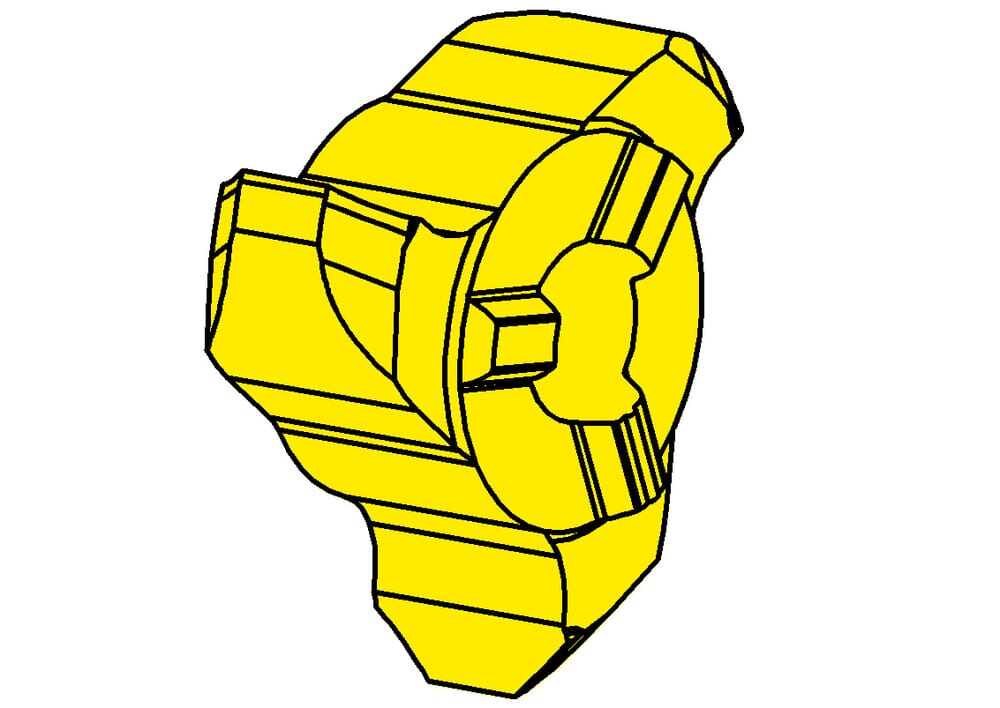

HORN Insert 313.4545.30.00 TA45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
2.6
mm
Cutting insert thickness, setting length complete (s)
9.4
mm
Setting length (E)
3.6
mm
Chamfer size (tmax)
3
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 313454530.DXF | Download |
| 313_4545_30_00_20171121_181602686.STP | Download |
| Download all files | |
