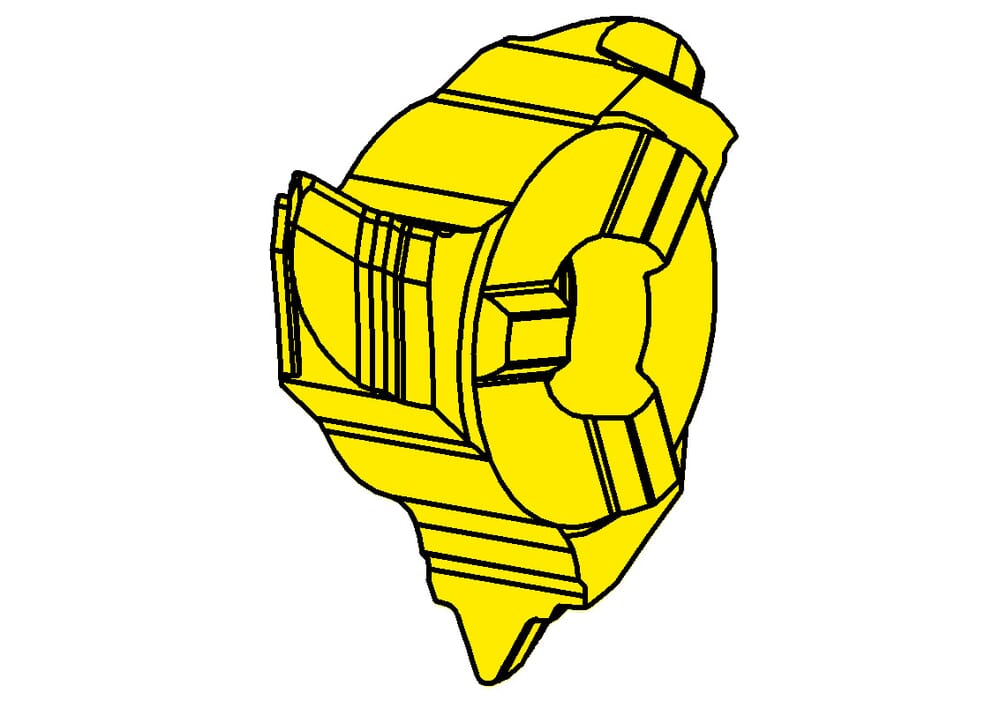

313.5511.02 EG55
insert
Part number 313551102EG55
HORN insert 313.5511.02 EG55 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
Threads per inch (TPI)
11
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
4
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
| Downloads | |
|---|---|
| 313_5511_02_EG55-ISO.XML | Download |
| 313_5511_02_EG55-DXF.DXF | Download |
| 313_5511_02_EG55-STP.STP | Download |
| 313_5511_02_EG55-DIN.XML | Download |
| Download all files | |
