325.0350.52 AS45
Insert
Part number 325035052AS45

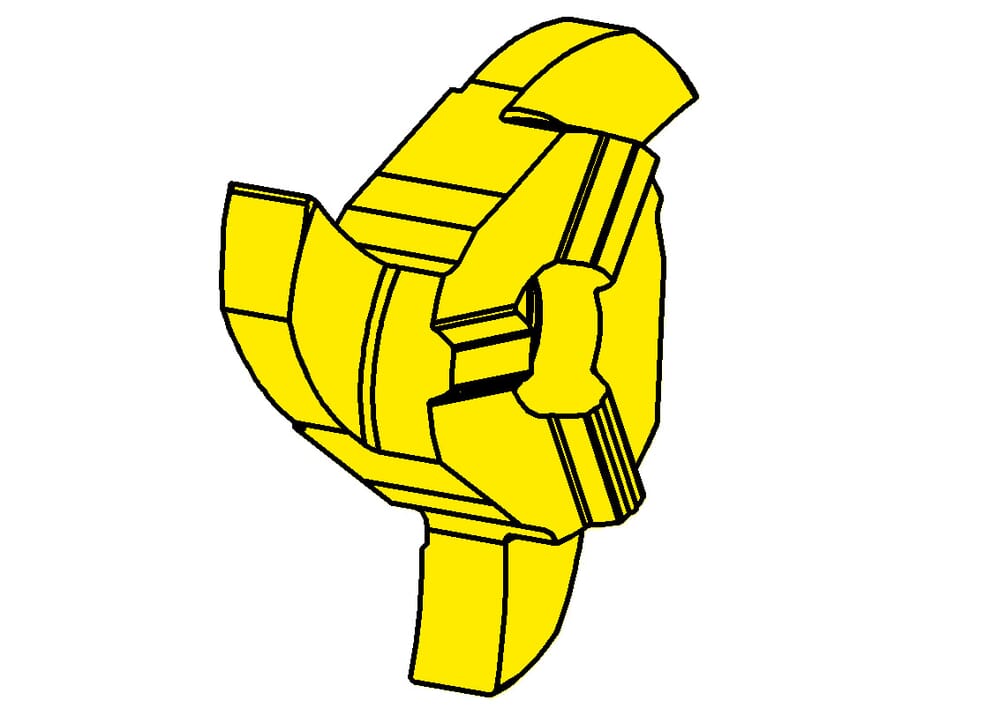

HORN Insert 325.0350.52 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
24.8
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
plating-seat-size
0
Width of groove (w)
3.5
mm
Maximum milling depth/ depth of groove (tmax)
5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 325_0350_52_AS45-DXF.DXF | Download |
| 325_0350_52_AS45-ISO.XML | Download |
| 325_0350_52_AS45-STP.STP | Download |
| 325_0350_52_AS45-DIN.XML | Download |
| Download all files | |
