328.0082.1.00 TN35
Inserts
Part number 3280082100TN35

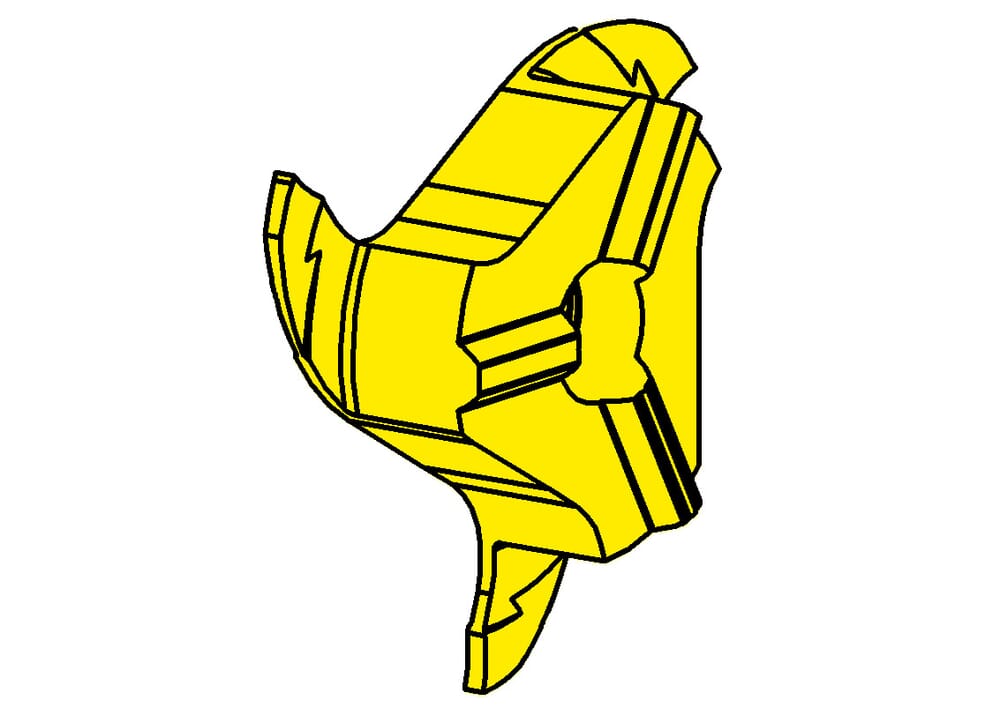

HORN Inserts 328.0082.1.00 TN35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
plating-seat-size
0
Width of groove (w)
0.82
mm
Maximum milling depth/ depth of groove (tmax)
5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 3280082100_20210706_163531319.DXF | Download |
| 3280082100_20230112_142238759.STP | Download |
| Download all files | |
