328.4545.35.00 TA45
Insert
Part number 32845453500TA45

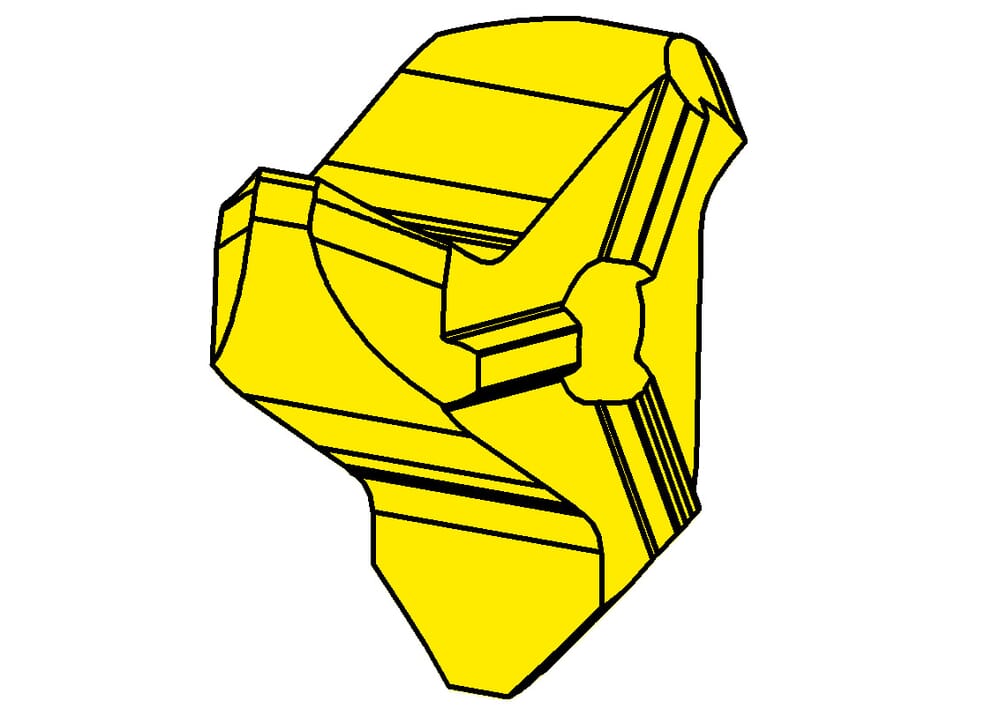

HORN Insert 328.4545.35.00 TA45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Width of groove (w)
2.6
mm
Cutting insert thickness, setting length complete (s)
10.2
mm
Setting length (E)
3.8
mm
Chamfer size (tmax)
3.5
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 328_4545_35_00_TA45-DXF.DXF | Download |
| 328_4545_35_00_TA45-ISO.XML | Download |
| 328_4545_35_00_TA45-STP.STP | Download |
| 328_4545_35_00_TA45-DIN.XML | Download |
| Download all files | |
