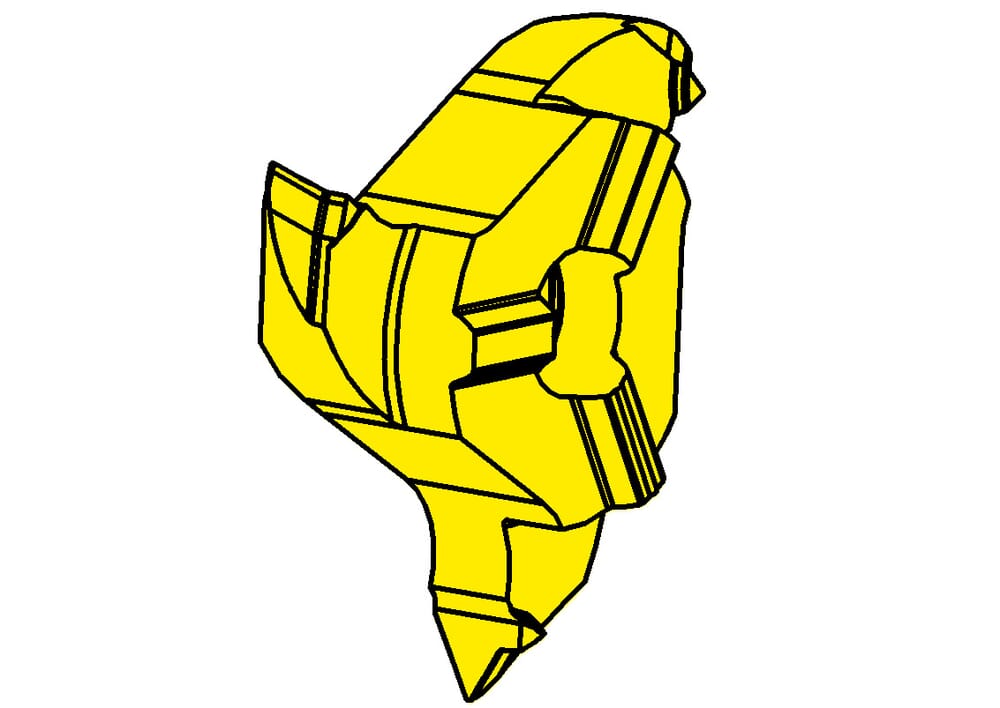

328.5060.01 AS45
Insert
Part number 328506001AS45
HORN Insert 328.5060.01 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Setting length (E)
4.4
mm
Cutting insert height, Cutting insert thickness (s)
7.2
mm
Pitch (P)
5
mm
Maximum pitch (Pmax)
6
mm
| Downloads | |
|---|---|
| 328_5060_01_AS45-DXF.DXF | Download |
| 328_5060_01_AS45-ISO.XML | Download |
| 328_5060_01_AS45-STP.STP | Download |
| 328_5060_01_AS45-DIN.XML | Download |
| Download all files | |
