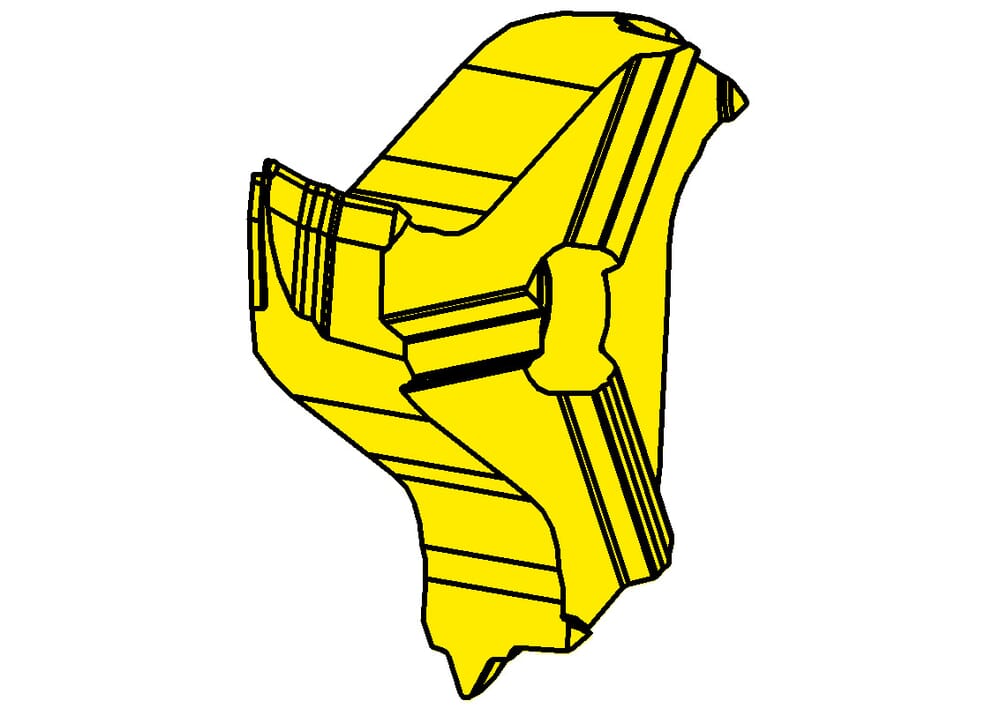

328.5511.02 AS45
Insert
Part number 328551102AS45
HORN Insert 328.5511.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
3
St.
Threads per inch (TPI)
11
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Setting length (E)
3.9
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
| Downloads | |
|---|---|
| 328_5511_02_AS45-ISO.XML | Download |
| 328_5511_02_AS45-STP.STP | Download |
| 328_5511_02_AS45-DXF.DXF | Download |
| 328_5511_02_AS45-DIN.XML | Download |
| Download all files | |
