332.4545.35.00 TA45
Insert
Part number 33245453500TA45

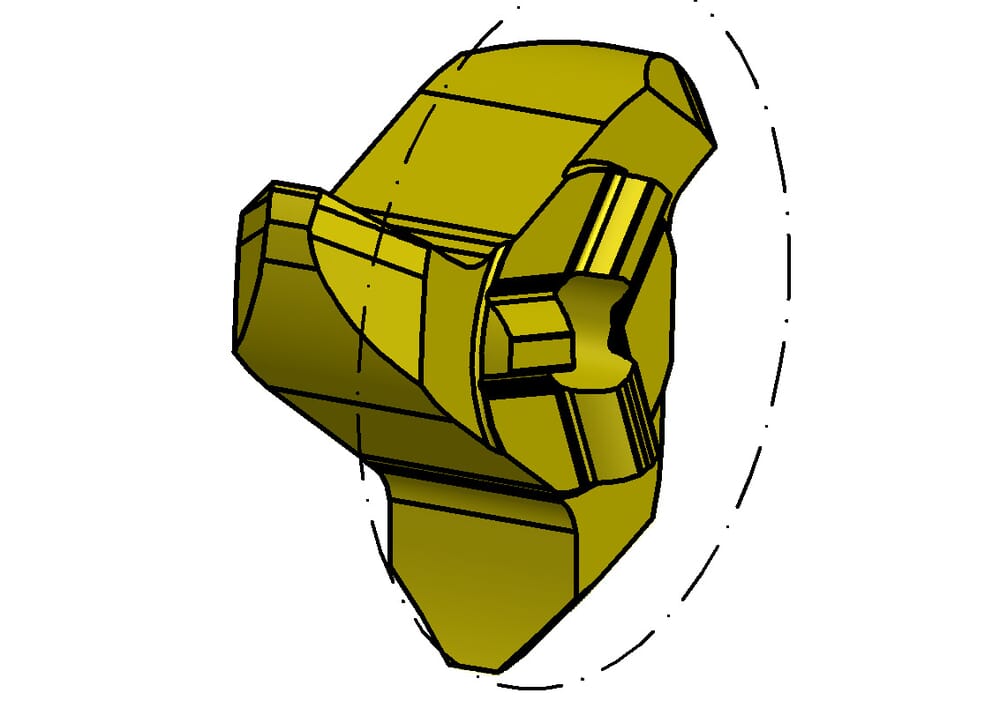

HORN Insert 332.4545.35.00 TA45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
31.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN332143$84R$$$$$
DIN_SSC
HORN33214384R
Katalog_SSC
332143R
Width of groove (w)
2.6
mm
Cutting insert thickness, setting length complete (s)
10.6
mm
Setting length (E)
4.25
mm
Chamfer size (tmax)
3.5
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 332_4545_35_00.DXF | Download |
| 33245453500_20210630_104415679.STP | Download |
| Download all files | |
