335.0200.00 AS45
Insert
Part number 335020000AS45

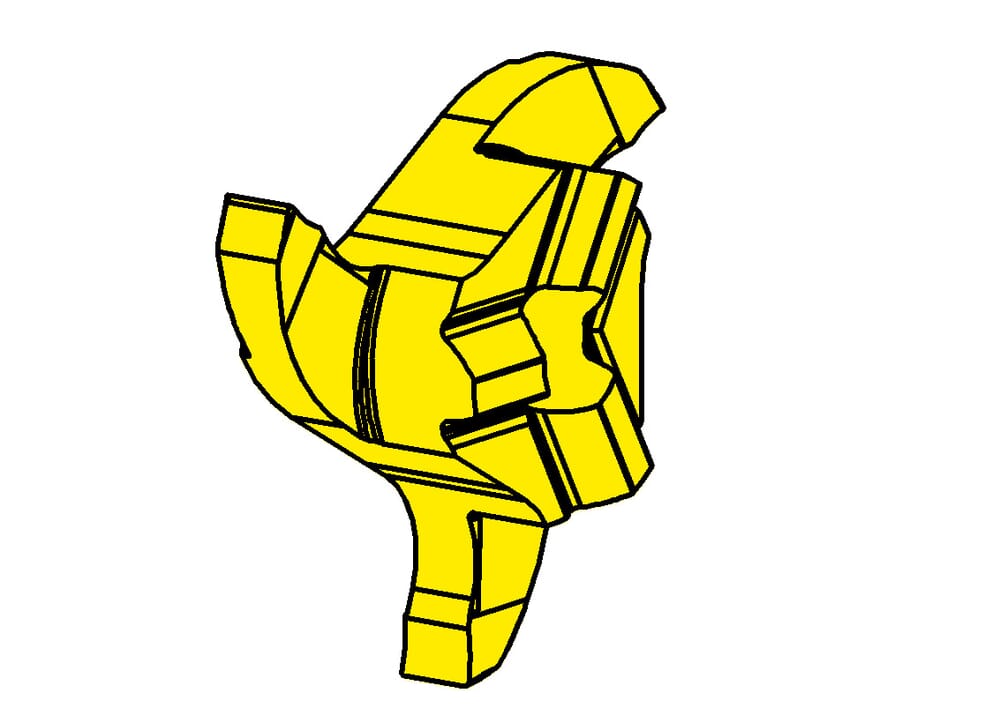

HORN Insert 335.0200.00 AS45 for Milling
Please note:Technical instructions
DIN_SSC
HORN33517584R
eclass-shortcut
21-18-20-11
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
8.7
mm
Maximum milling depth/ depth of groove (tmax)
8
mm
Width of groove (w)
2
mm
plating-seat-size
0
Katalog_SSC
335175R
ISO_SSC
HORN335175$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
34.7
mm
| Downloads | |
|---|---|
| 335020000_20210629_105737989.DXF | Download |
| 335020000_20210630_114157817.STP | Download |
| Download all files | |
