382.0200.50.10

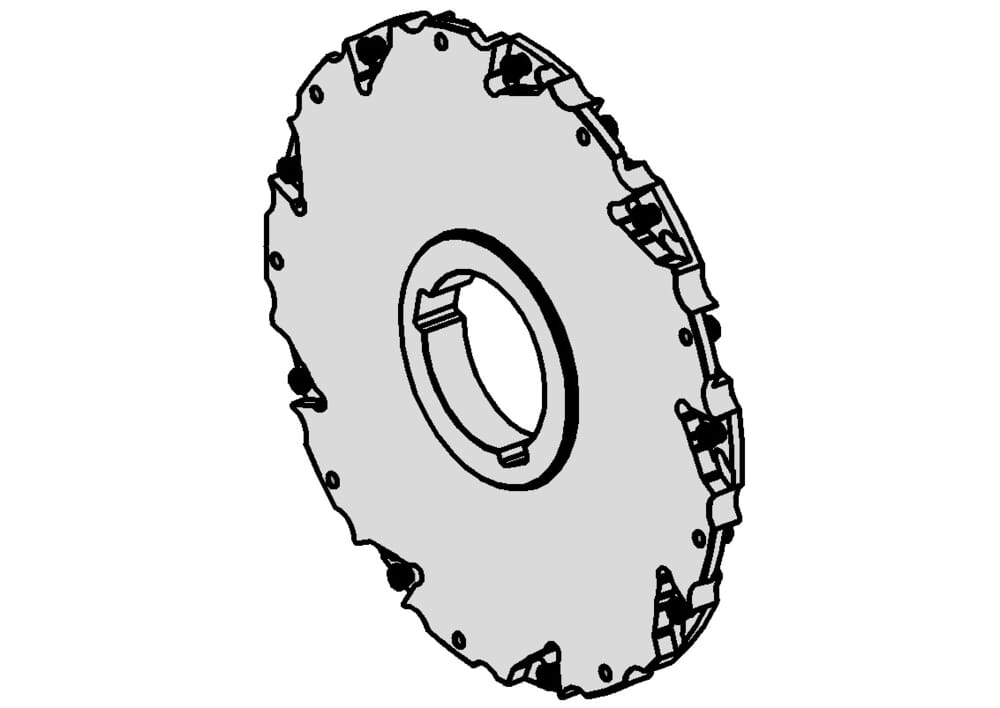

Disk milling cutter

Part number 38202005010

HORN Disk milling cutter 382.0200.50.10 for Milling

Katalog_CCTWS

314052R;314052L

eclass-shortcut

21-18-09-06

Total width with drive rings (b2)

14 mm

Maximum milling depth/ depth of groove (tmax)

63.5 mm

Left hand indexable insert (linke WSP)

9x L314...

Right hand indexable insert (rechte WSP)

9x R314...

Cutting width maximum (w)

10 mm

Mounting hole diameter (d2)

50 mm

ISO_CCTMS

FDA01G5000$$$$

DIN_CCTMS

FDA05000100

DIN_CCTWS

HORN-314052101R;HORN-314052101L

ISO_CCTWS

HORN314052101R$$$$$;HORN314052101L$$$$$

Number of teeth (Z)

9 St.

Bore diameter miller body (d3)

71 mm

Cutting diameter (Ds)

200 mm
