382.0200.50.14
Toolholders
Part number 38202005014

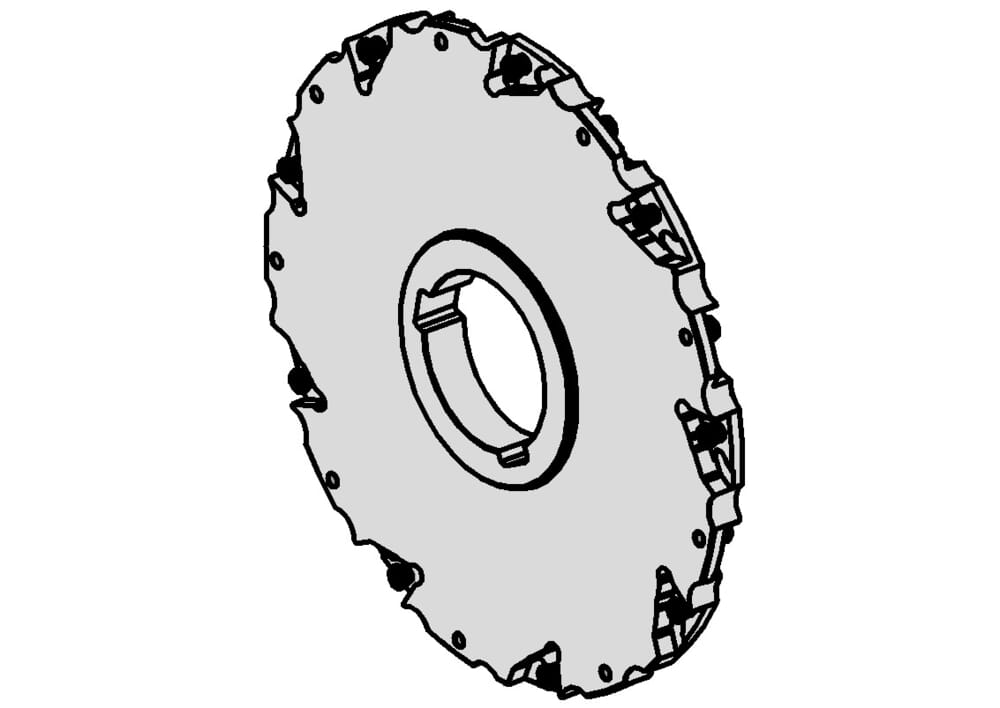

HORN Toolholders 382.0200.50.14 for Milling
Please note:Technical instructions
Cutting width maximum (w)
14
mm
eclass-shortcut
21-18-09-06
Total width with drive rings (b2)
16
mm
Maximum milling depth/ depth of groove (tmax)
63.5
mm
Left hand indexable insert (linke WSP)
6x L314...
Right hand indexable insert (rechte WSP)
2x6 R314...
Cutting diameter (Ds)
200
mm
Mounting hole diameter (d2)
50
mm
ISO_CCTMS
FDA01G5000$$$$
DIN_CCTMS
FDA05000100
Katalog_CCTWS
314052R;314052L
DIN_CCTWS
HORN-314052101R;HORN-314052101L
ISO_CCTWS
HORN314052101R$$$$$;HORN314052101L$$$$$
Number of teeth (Z)
9
St.
Bore diameter miller body (d3)
71
mm
