606.0015.22 AS45
Insert
Part number 606001522AS45

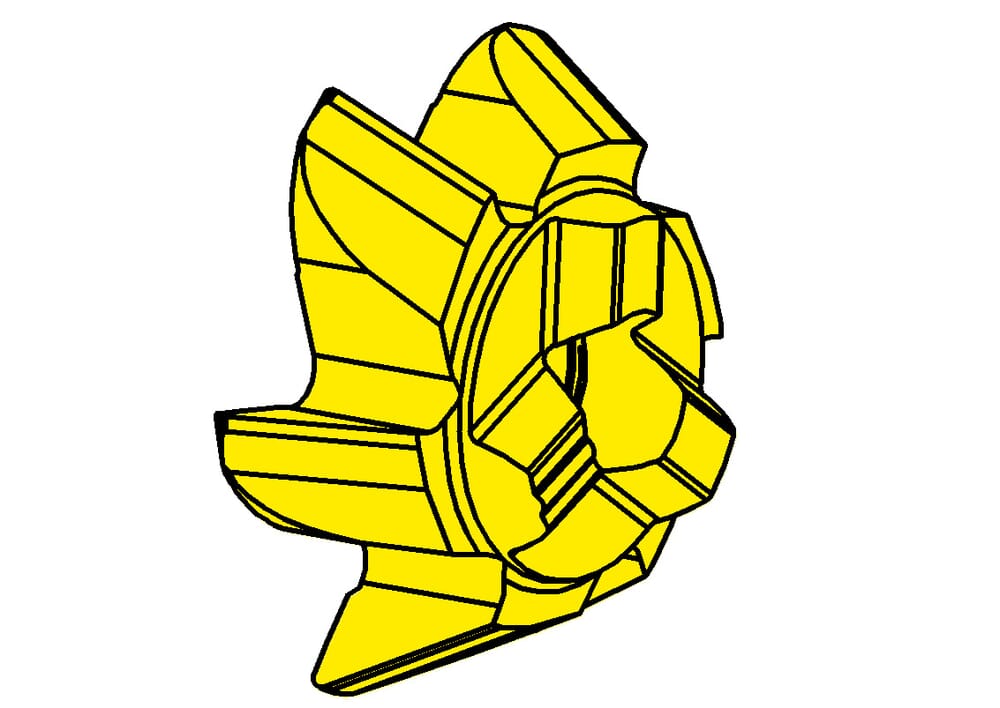

HORN Insert 606.0015.22 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Cutting depth (tmax)
0.7
Cutting insert thickness, setting length complete (s)
3.5
mm
Corner radius (r)
0.2
mm
Angle of chamfer (α)
15
°
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 606001522.DXF | Download |
| 606001522_20210630_115218597.STP | Download |
| Download all files | |
