606.0515.01 TA45
Insert
Part number 606051501TA45

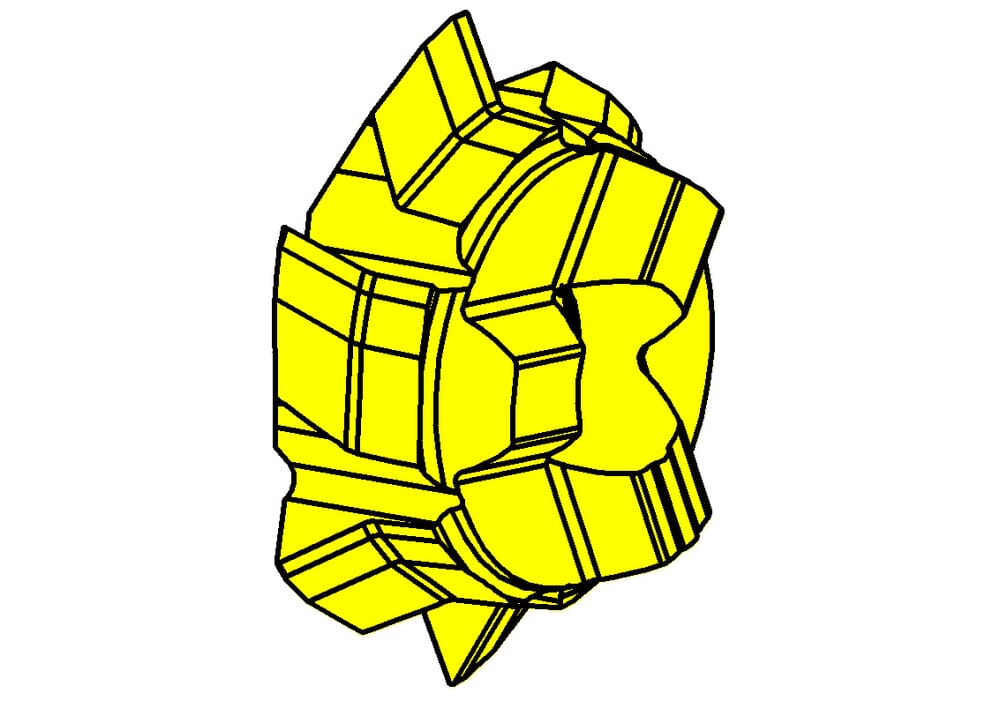

HORN Insert 606.0515.01 TA45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
10
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Setting length (E)
2.3
mm
Cutting insert height, Cutting insert thickness (s)
3.15
mm
Pitch (P)
0.5
mm
Maximum pitch (Pmax)
1.5
mm
| Downloads | |
|---|---|
| 606_0515_01_TA45-ISO.XML | Download |
| 606_0515_01_TA45-DXF.DXF | Download |
| 606_0515_01_TA45-STP.STP | Download |
| 606_0515_01_TA45-DIN.XML | Download |
| Download all files | |
