606.1515.20 TA45
Insert
Part number 606151520TA45

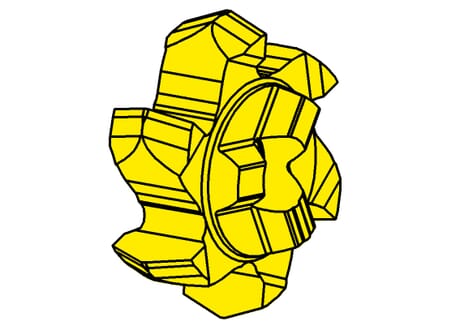

HORN Insert 606.1515.20 TA45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Width of groove (w)
0.2
mm
Cutting insert thickness, setting length complete (s)
3.7
mm
Setting length (E)
1.9
mm
Angle of chamfer (α)
15
°
Chamfer with maximum (b)
1.5
mm
| Downloads | |
|---|---|
| 606_1515_20_TA45-DXF.DXF | Download |
| 606_1515_20_TA45-DIN.XML | Download |
| 606_1515_20_TA45-STP.STP | Download |
| 606_1515_20_TA45-ISO.XML | Download |
| Download all files | |
