606.5514.02 TA45
Insert
Part number 606551402TA45

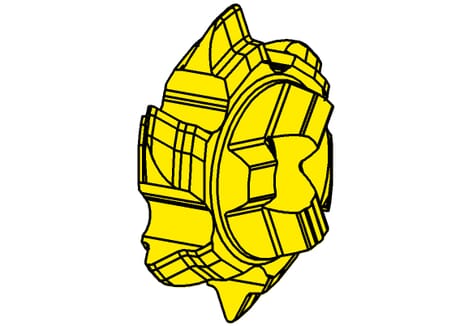

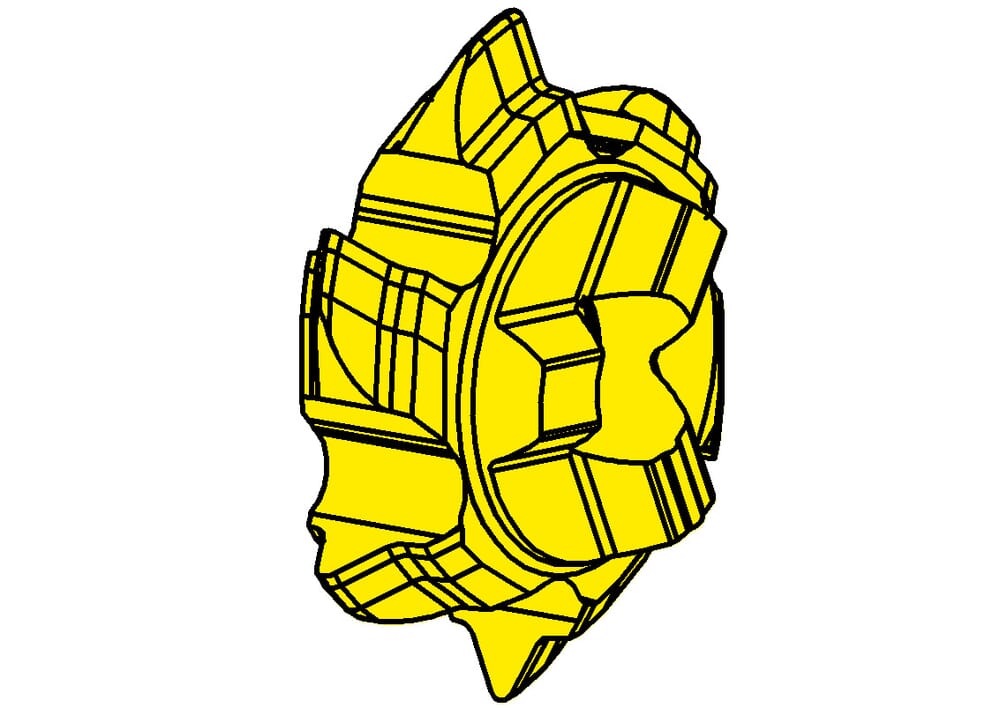

HORN Insert 606.5514.02 TA45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
number-of-teeth
6
St.
Threads per inch (TPI)
14
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Setting length (E)
2
mm
Cutting insert height, Cutting insert thickness (s)
3.3
mm
| Downloads | |
|---|---|
| 606_5514_02_TA45-ISO.XML | Download |
| 606_5514_02_TA45-DXF.DXF | Download |
| 606_5514_02_TA45-STP.STP | Download |
| 606_5514_02_TA45-DIN.XML | Download |
| Download all files | |
