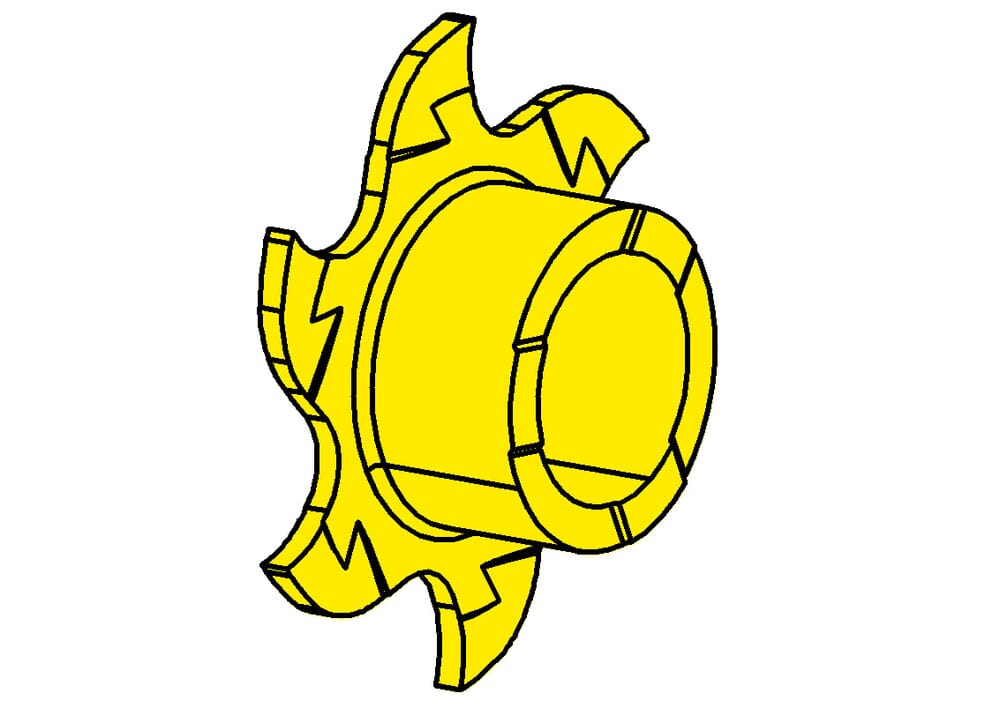

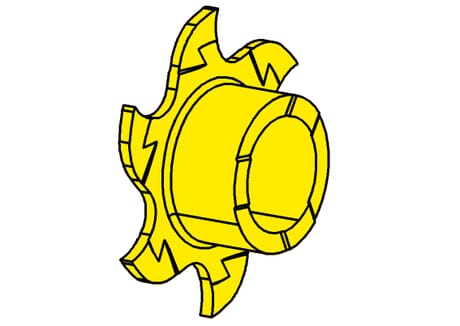

608.0150.00 TI25
Insert
Part number 608015000TI25
HORN Insert 608.0150.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
plating-seat-size
0
Width of groove (w)
1.5
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
4.9
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 608015000_20210627_104612486.DXF | Download |
| 608015000_20230112_144435177.STP | Download |
| Download all files | |
