608.2020.20 TA45
Insert
Part number 608202020TA45

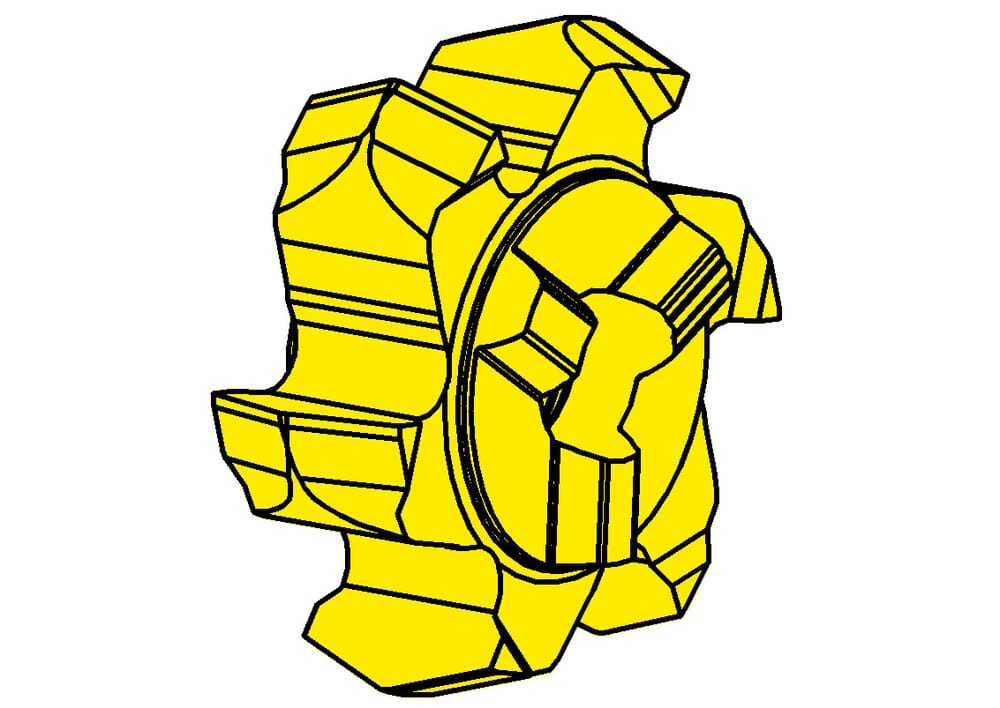

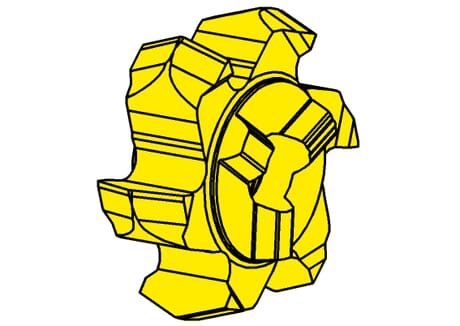

HORN Insert 608.2020.20 TA45 for Milling
Please note:Technical instructions
Katalog_SSC
308080R
eclass-shortcut
21-18-20-11
Chamfer with maximum (b)
2.2
mm
Angle of chamfer (α)
20
°
Chamfer size (tmax)
0.8
mm
Setting length (E)
2.6
mm
Cutting insert thickness, setting length complete (s)
5.1
mm
Width of groove (w)
0.2
mm
DIN_SSC
HORN30808084R
ISO_SSC
HORN308080$84R$$$$$
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
15.7
mm
| Downloads | |
|---|---|
| 608202020_20210627_113701899.DXF | Download |
| 608202020_20230112_142919889.STP | Download |
| Download all files | |
