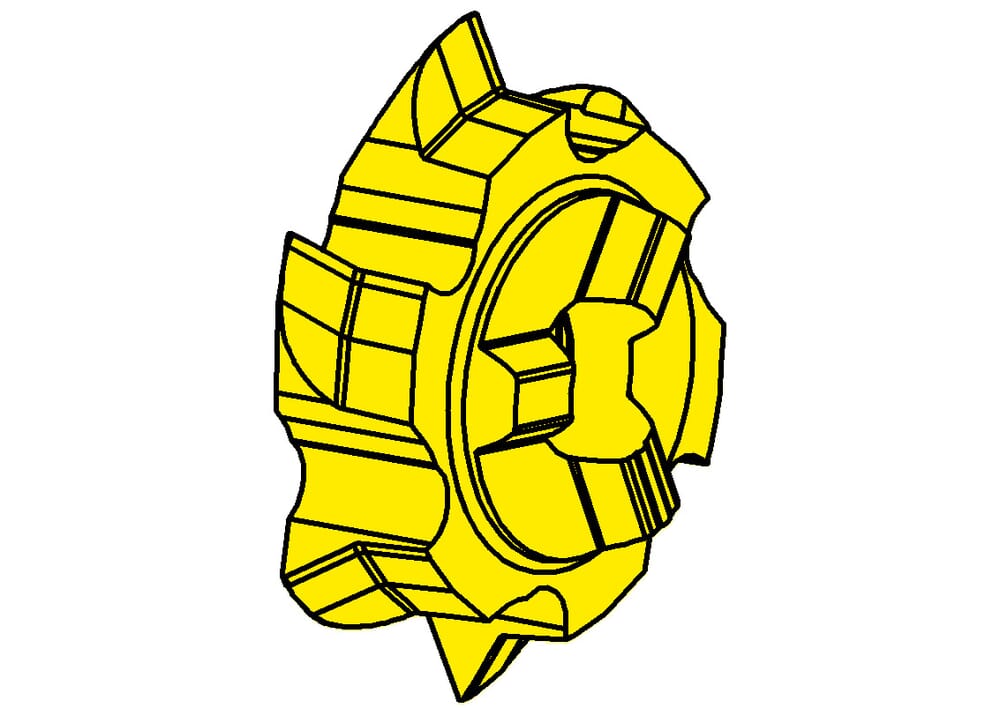

608.2530.01 TI25
Inserts
Part number 608253001TI25
HORN Inserts 608.2530.01 TI25 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
15.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN308080$84R$$$$$
Katalog_SSC
308080R
Setting length (E)
2.9
mm
Cutting insert height, Cutting insert thickness (s)
4.55
mm
Pitch (P)
2.5
mm
Maximum pitch (Pmax)
3
mm
| Downloads | |
|---|---|
| 608_2530_01_TI25-ISO.XML | Download |
| 608_2530_01_TI25-DXF.DXF | Download |
| 608_2530_01_TI25-STP.STP | Download |
| 608_2530_01_TI25-DIN.XML | Download |
| Download all files | |
