608.3030.20 TA45

Insert

Part number 608303020TA45

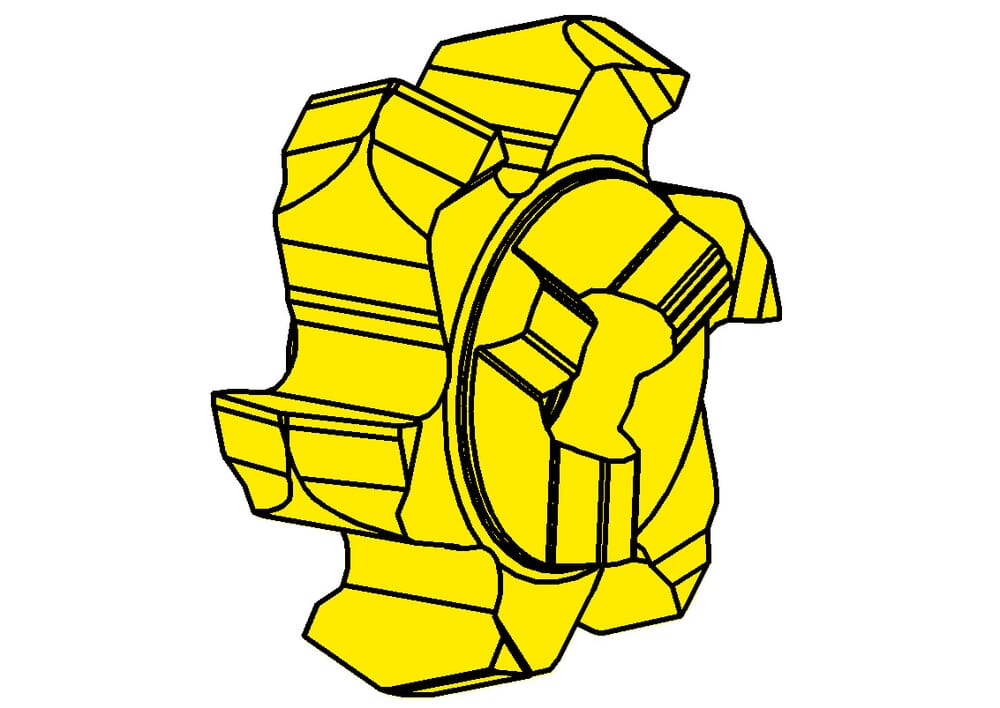

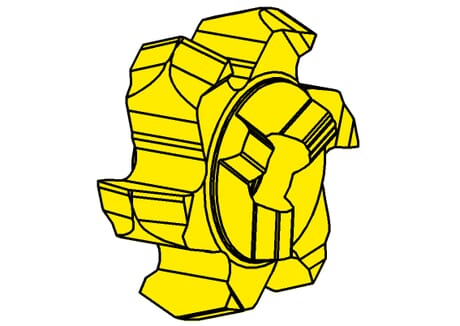

HORN Insert 608.3030.20 TA45 for Milling

Katalog_SSC

308080R

eclass-shortcut

21-18-20-11

Chamfer with maximum (b)

2.2 mm

Angle of chamfer (α)

30 °

Chamfer size (tmax)

1.3 mm

Setting length (E)

2.6 mm

Cutting insert thickness, setting length complete (s)

5.1 mm

Width of groove (w)

0.2 mm

DIN_SSC

HORN30808084R

ISO_SSC

HORN308080$84R$$$$$

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

15.7 mm
