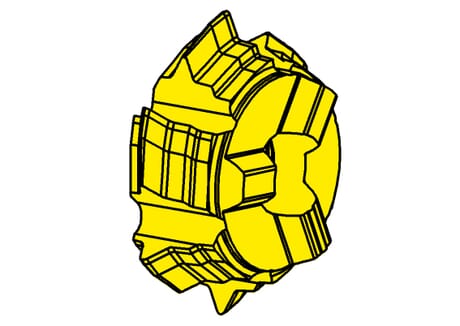

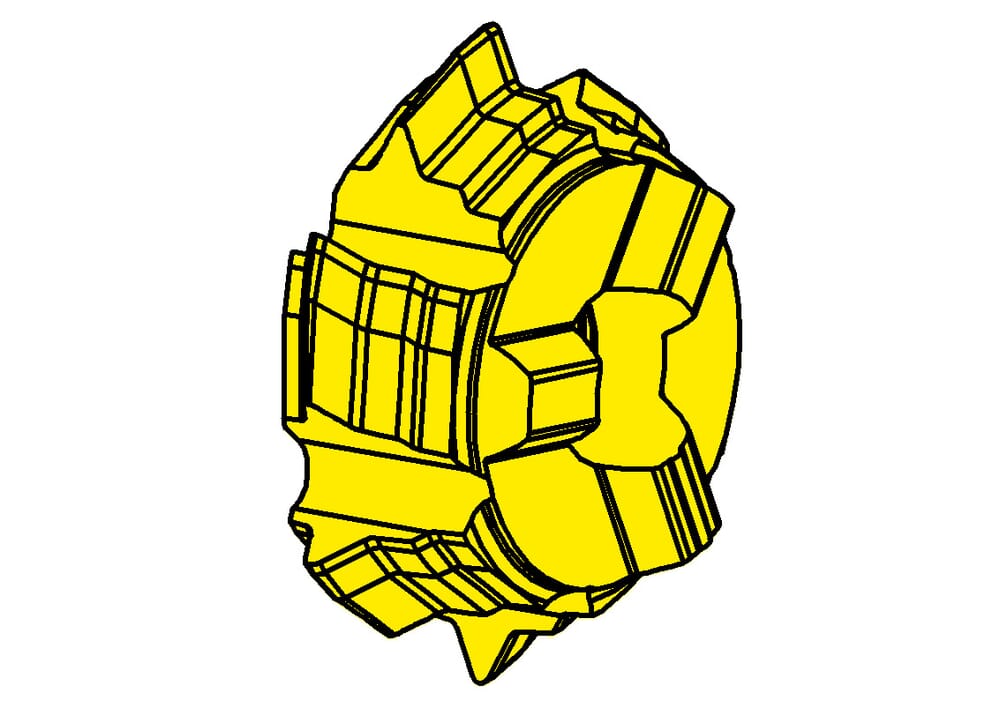

608.5514.02 AS45
Insert
Part number 608551402AS45
HORN Insert 608.5514.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
13.5
mm
Number of teeth (Z)
6
St.
Threads per inch (TPI)
14
eclass-shortcut
21-18-20-11
ISO_SSC
HORN308080$84R$$$$$
Katalog_SSC
308080R
Setting length (E)
3.2
mm
Cutting insert height, Cutting insert thickness (s)
4.7
mm
| Downloads | |
|---|---|
| 608_5514_02_AS45-ISO.XML | Download |
| 608_5514_02_AS45-DXF.DXF | Download |
| 608_5514_02_AS45-STP.STP | Download |
| 608_5514_02_AS45-DIN.XML | Download |
| Download all files | |
