611.0110.00 TI25
Inserts
Part number 611011000TI25

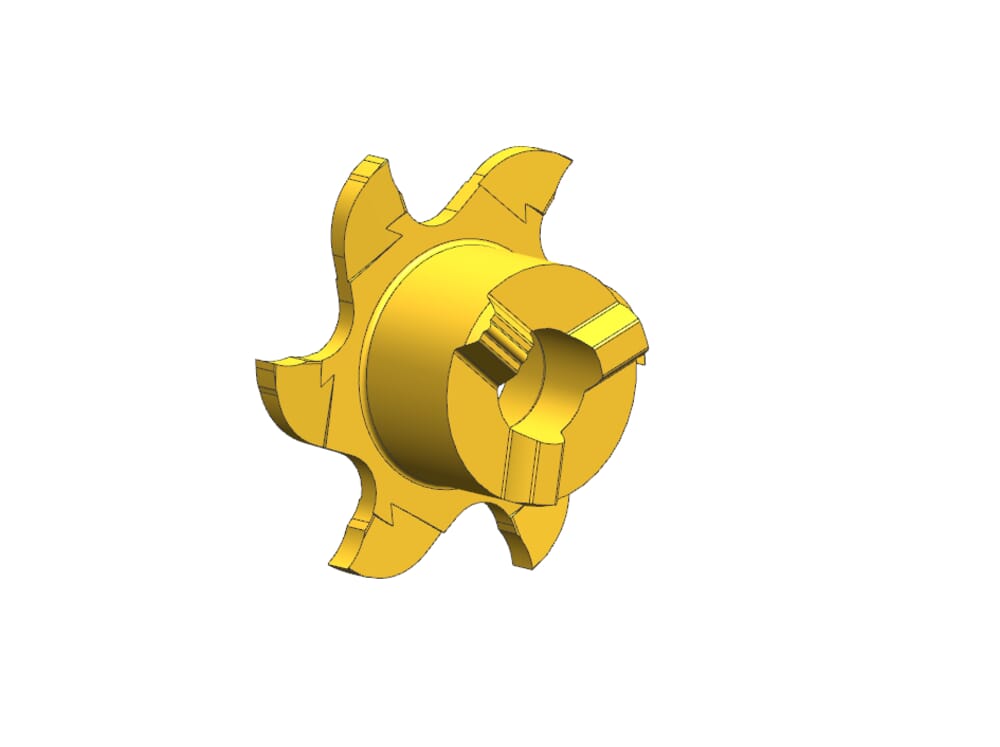

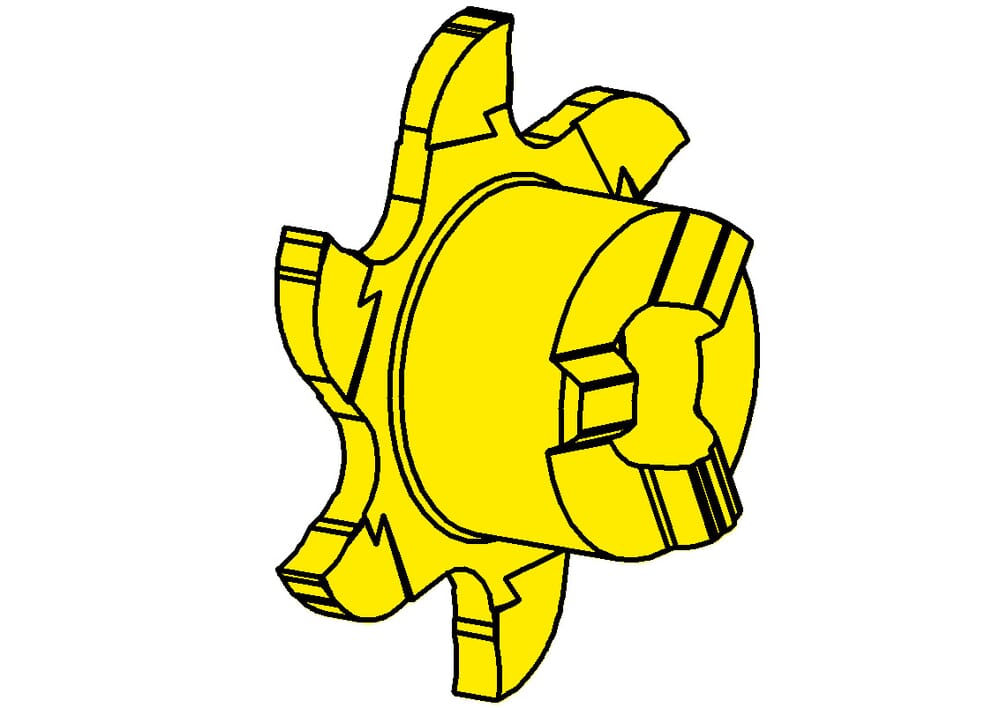

HORN Inserts 611.0110.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN-31109084R
Katalog_SSC
311090R
Width of groove (w)
1.21
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Nominal range (Nw)
1.1
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 611011000_20210706_202753681.DXF | Download |
| 611011000_20230112_151400640.STP | Download |
| Download all files | |
