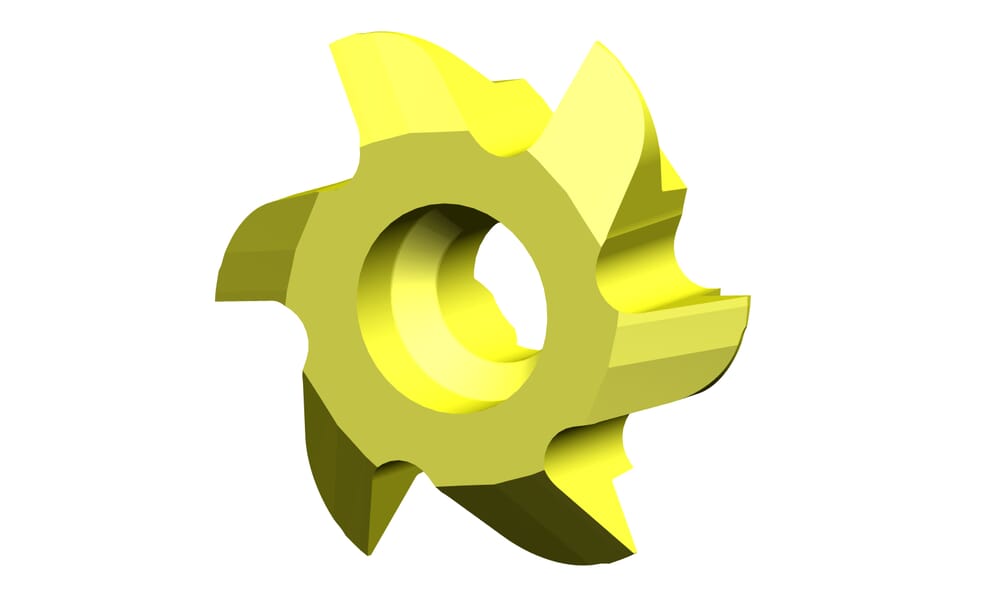

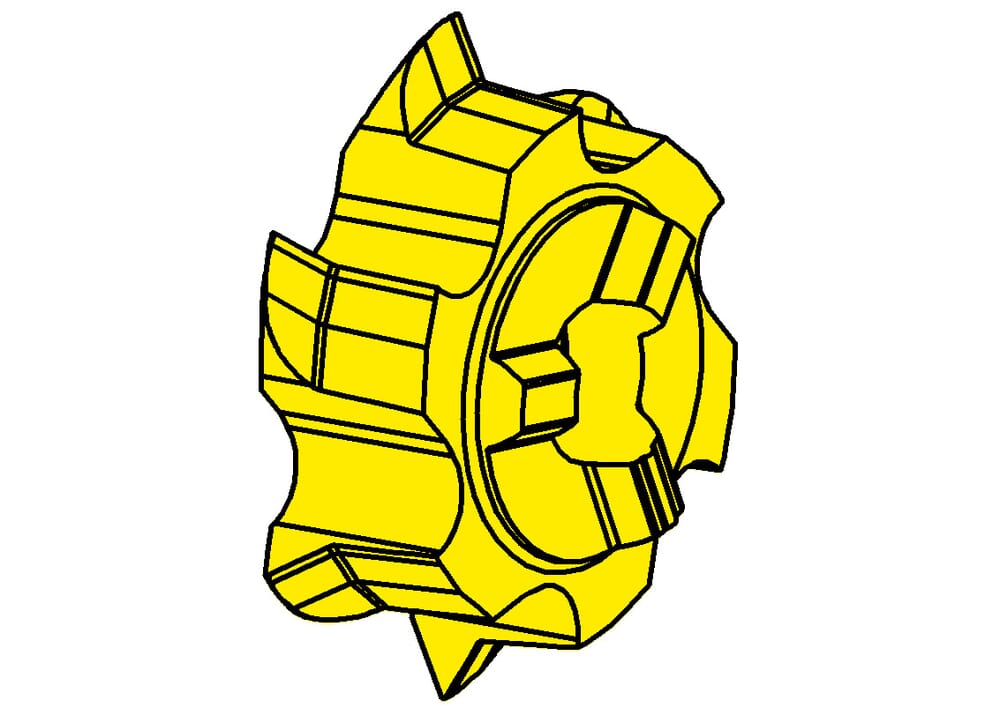

611.2535.01 TI25
Inserts
Part number 611253501TI25
HORN Inserts 611.2535.01 TI25 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Setting length (E)
3.7
mm
Cutting insert height, Cutting insert thickness (s)
5.75
mm
Pitch (P)
2.5
mm
Maximum pitch (Pmax)
3.5
mm
| Downloads | |
|---|---|
| 611_2535_01_TI25-ISO.XML | Download |
| 611_2535_01_TI25-DXF.DXF | Download |
| 611_2535_01_TI25-STP.STP | Download |
| 611_2535_01_TI25-DIN.XML | Download |
| Download all files | |
