611.3030.20 TA45

Insert

Part number 611303020TA45

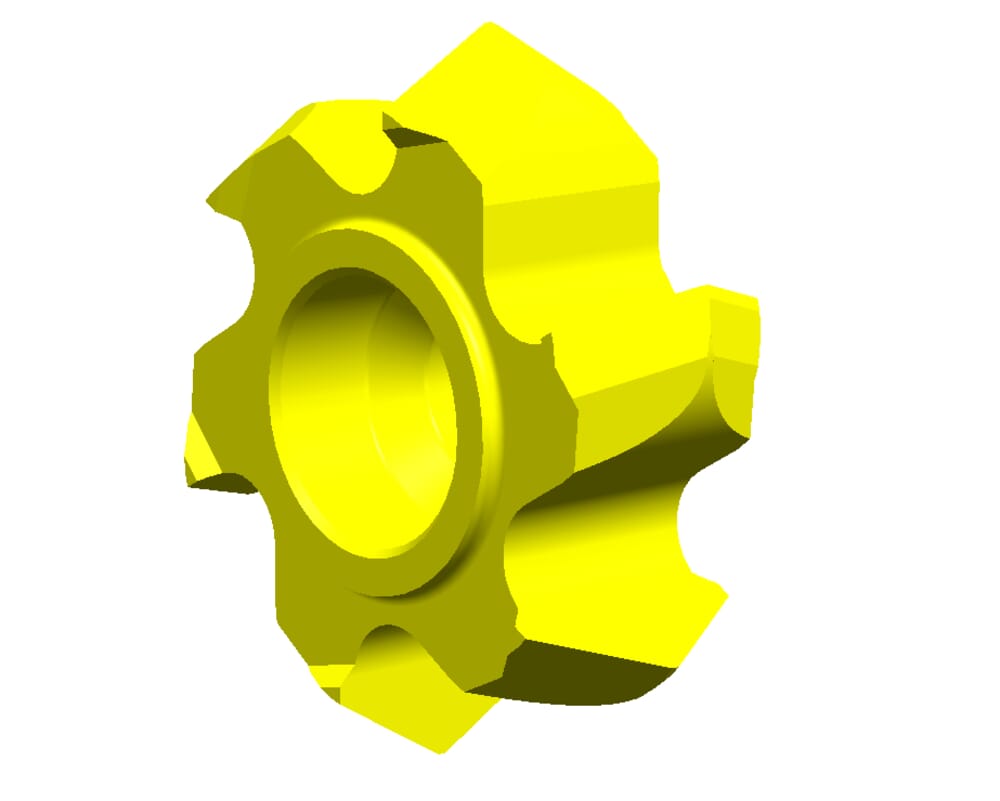

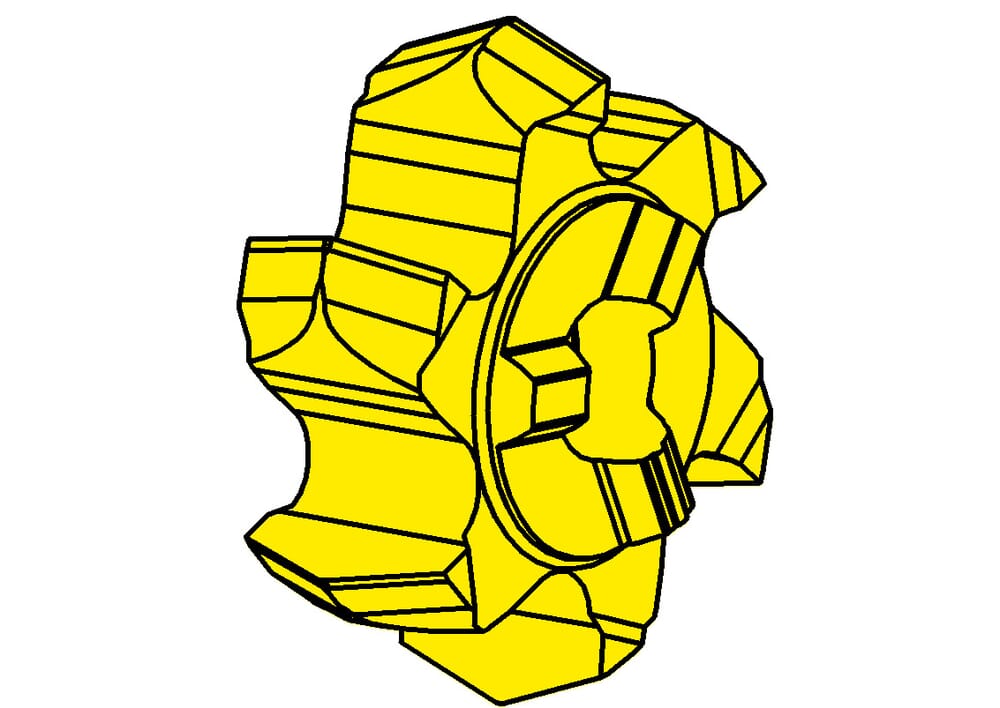

HORN Insert 611.3030.20 TA45 for Milling

Cutting diameter (Ds)

17.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN311090$84R$$$$$

Katalog_SSC

311090R

Width of groove (w)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Setting length (E)

3.2 mm

Chamfer size (tmax)

1.6 mm

Angle of chamfer (α)

30 °

Chamfer with maximum (b)

2.8 mm
