611.4545.20 TI25

Insert

Part number 611454520TI25

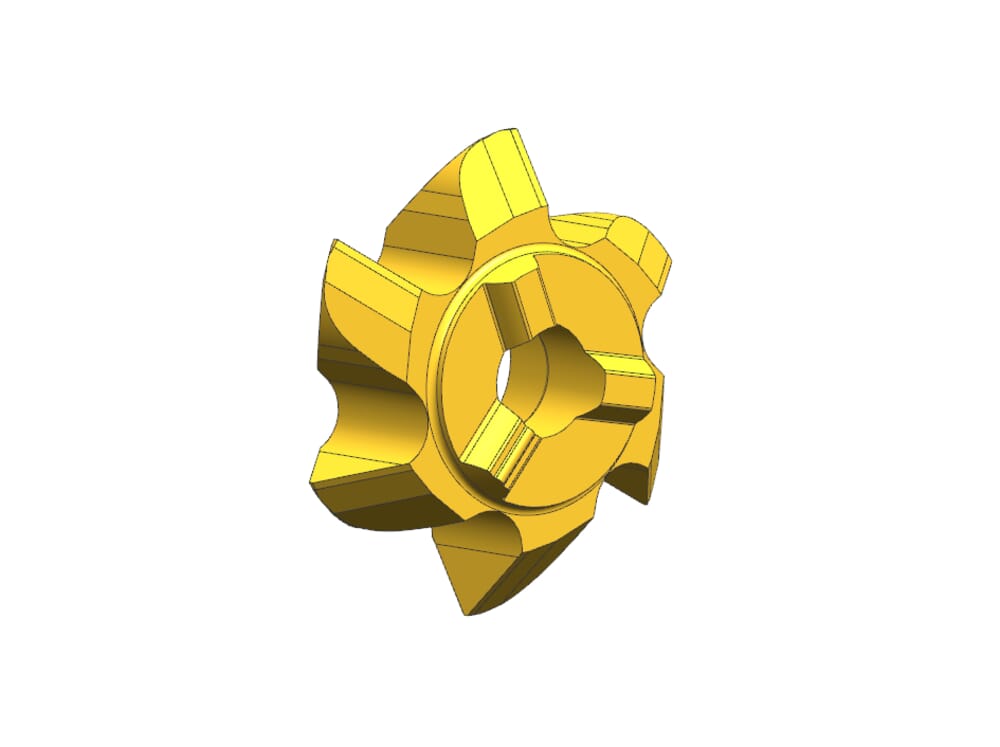

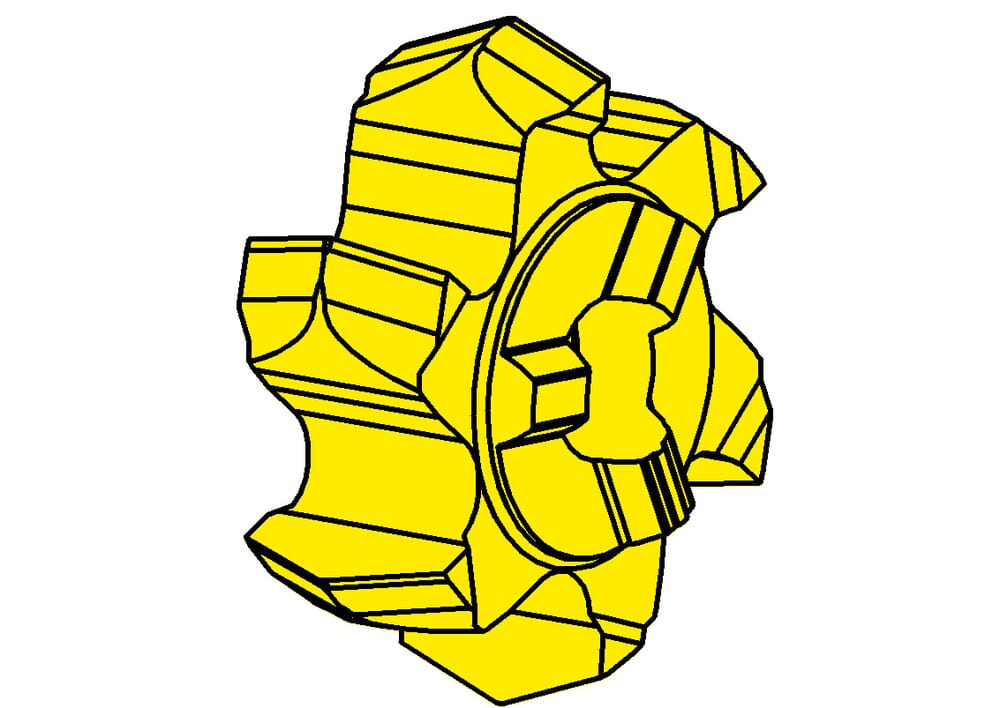

HORN Insert 611.4545.20 TI25 for Milling

Katalog_SSC

311090R

eclass-shortcut

21-18-20-11

Chamfer with maximum (b)

2.3 mm

Angle of chamfer (α)

45 °

Chamfer size (tmax)

2.3 mm

Setting length (E)

3.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Width of groove (w)

0.2 mm

DIN_SSC

HORN-31109084L

ISO_SSC

HORN311090$84R$$$$$

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

17.7 mm
