611.PL61.62 TF45
Insert
Part number 611PL6162TF45

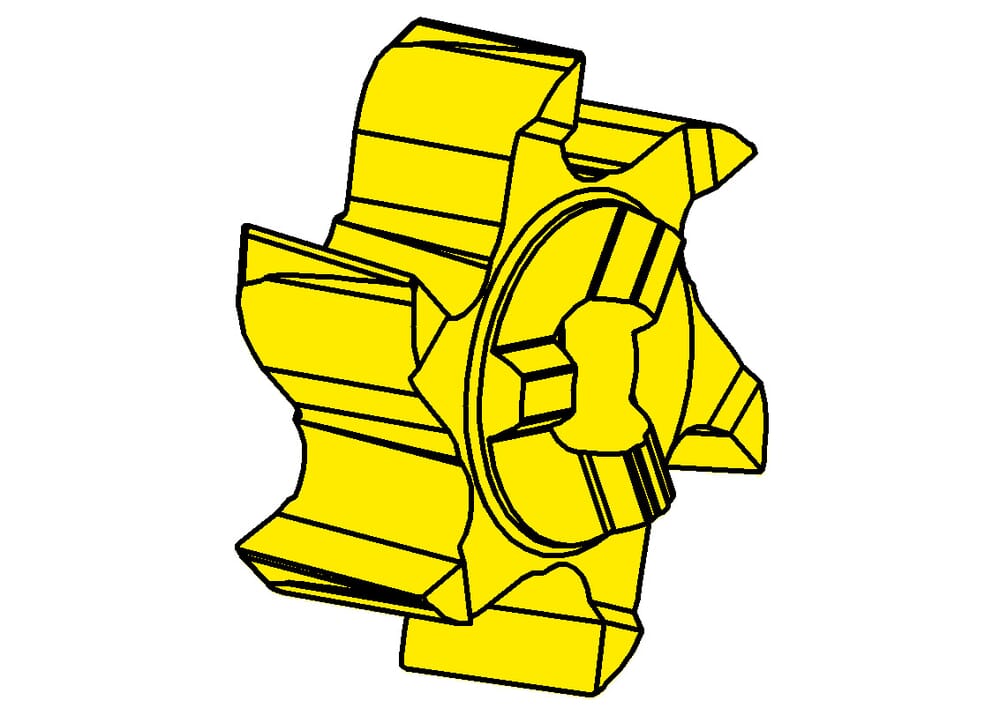

HORN Insert 611.PL61.62 TF45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN-31109084L
Katalog_SSC
311090R
Cutting depth (tmax)
5.7
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Corner radius (r)
0.2
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 611PL6162_20210706_132925024.DXF | Download |
| 611_PL61_62_20171121_233046928.STP | Download |
| Download all files | |
