613.0015.25 AS45
Insert
Part number 613001525AS45

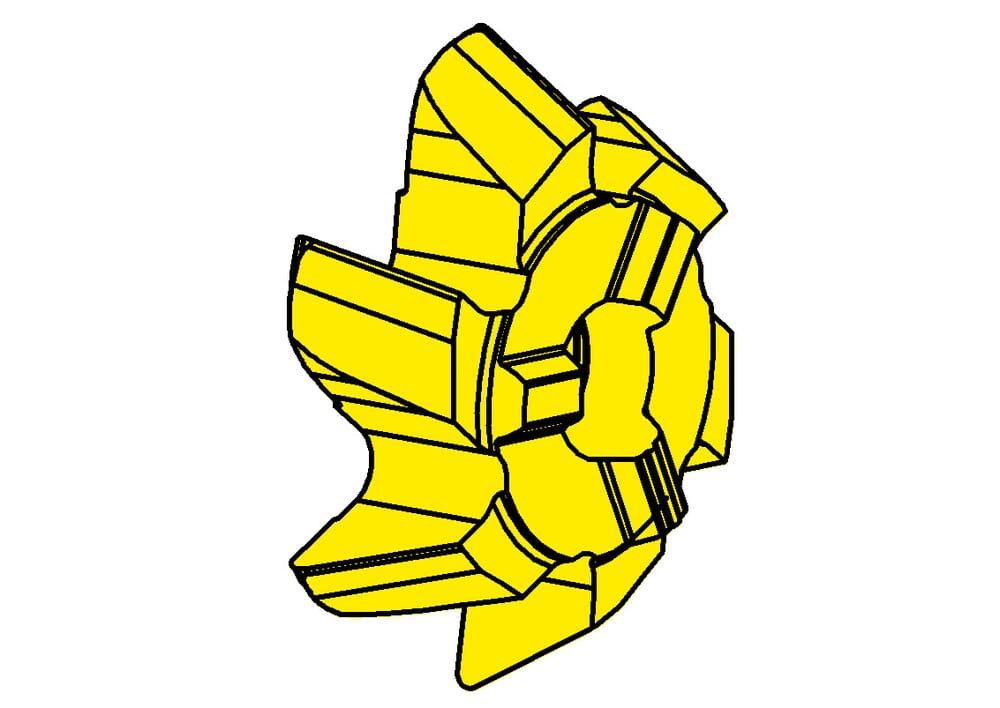

HORN Insert 613.0015.25 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Cutting depth (tmax)
1.1
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.5
mm
Angle of chamfer (α)
15
°
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 613001525.DXF | Download |
| 613001525_20210630_113202000.STP | Download |
| Download all files | |
