back to products
613_0045_25_AS45-PICTO.TIF
613_0045_25_AS45-PICTO.TIF 613004525.TIF

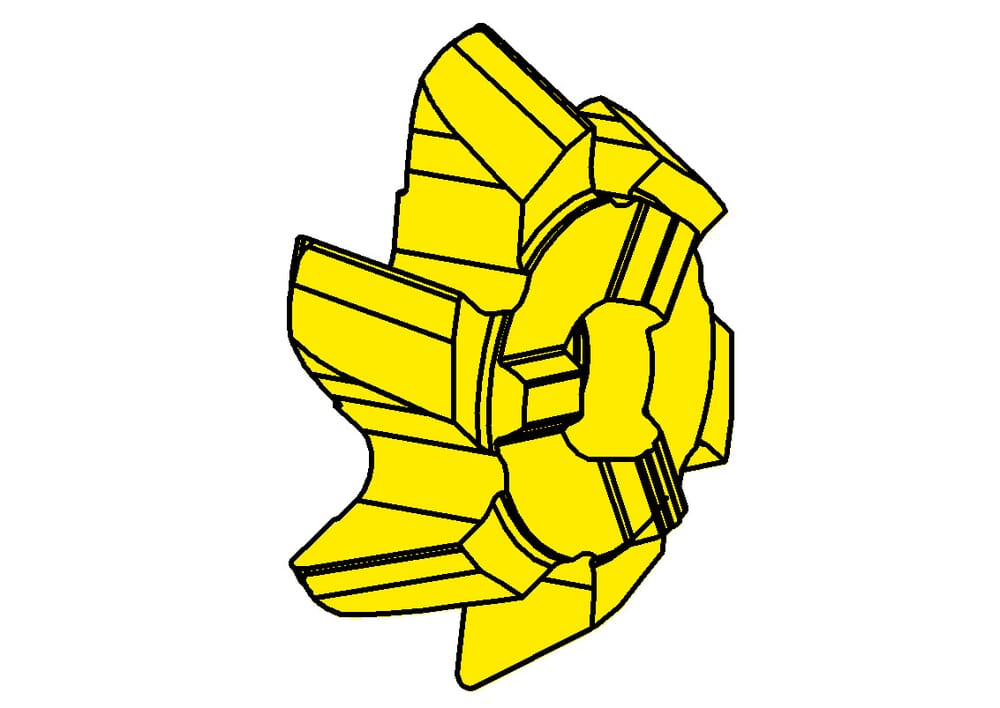

613.0045.25 AS45

Insert

PLANFRAESEN.EPS FASEN.EPS VERZAHNUNG_FRAESEN.EPS AUSSEN_EINSTECHEN_GEWINDEFREISTICH.EPS ZAEHNEZAHL_Z6.EPS

Part number 613004525AS45

HORN Insert 613.0045.25 AS45 for Milling

Please note:Technical instructions

Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Cutting depth (tmax)
3.5 mm
Cutting insert thickness, setting length complete (s)
5.7 mm
Corner radius (r)
0.5 mm
Angle of chamfer (α)
45 °
Downloads
613_0045_25_AS45-DXF.DXF Download
613_0045_25_AS45-ISO.XML Download
613_0045_25_AS45-STP.STP Download
613_0045_25_AS45-DIN.XML Download
Download all files
