613.0045.25 EG55

Insert

Part number 613004525EG55

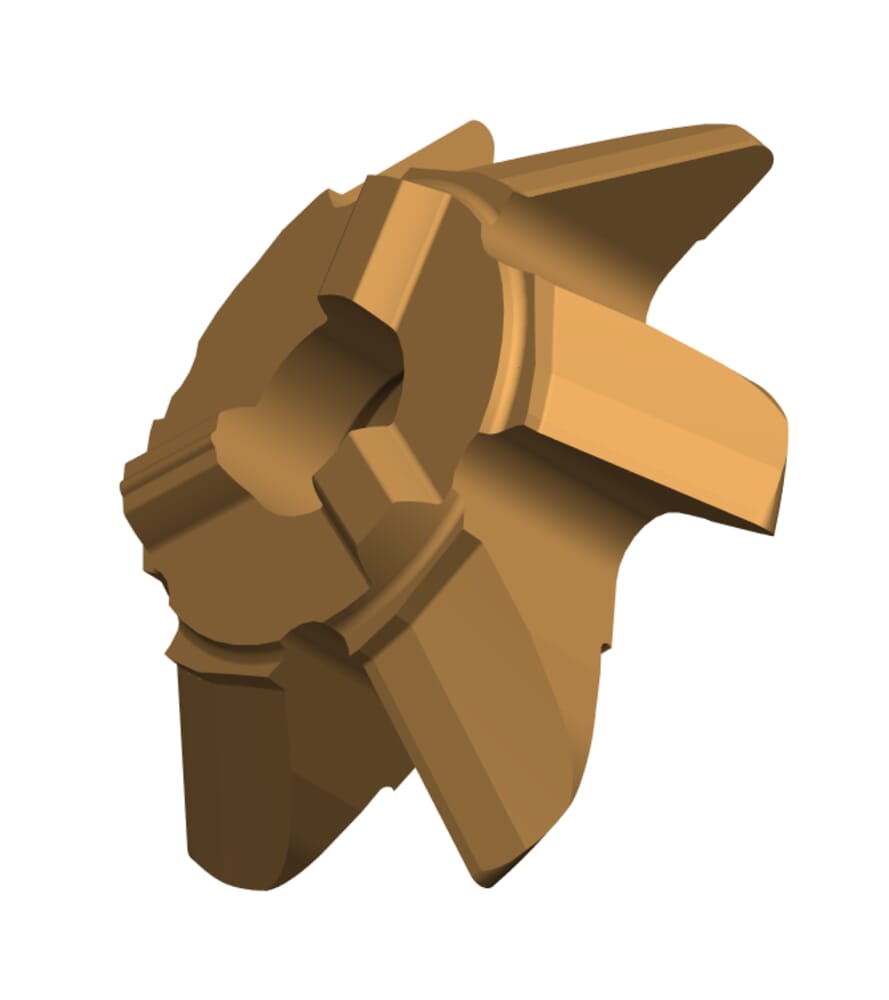

HORN Insert 613.0045.25 EG55 for Milling

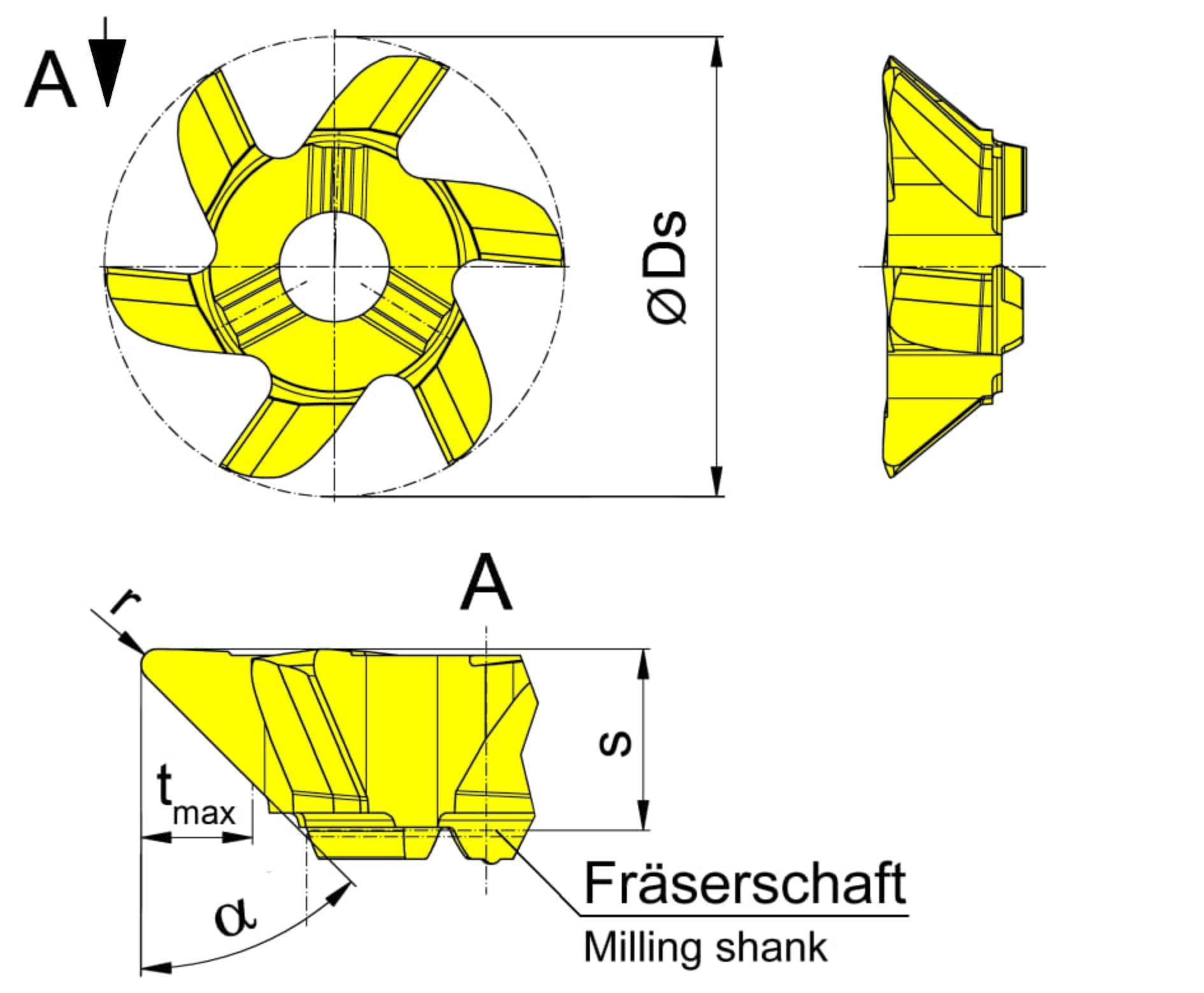

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

DIN_SSC

HORN-31311384R

Katalog_SSC

313113R

Cutting depth (tmax)

3.5 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner radius (r)

0.5 mm

Angle of chamfer (α)

45 °

eclass-shortcut

21-18-20-11
