613.0100.1.00 TI25
Insert
Part number 6130100100TI25

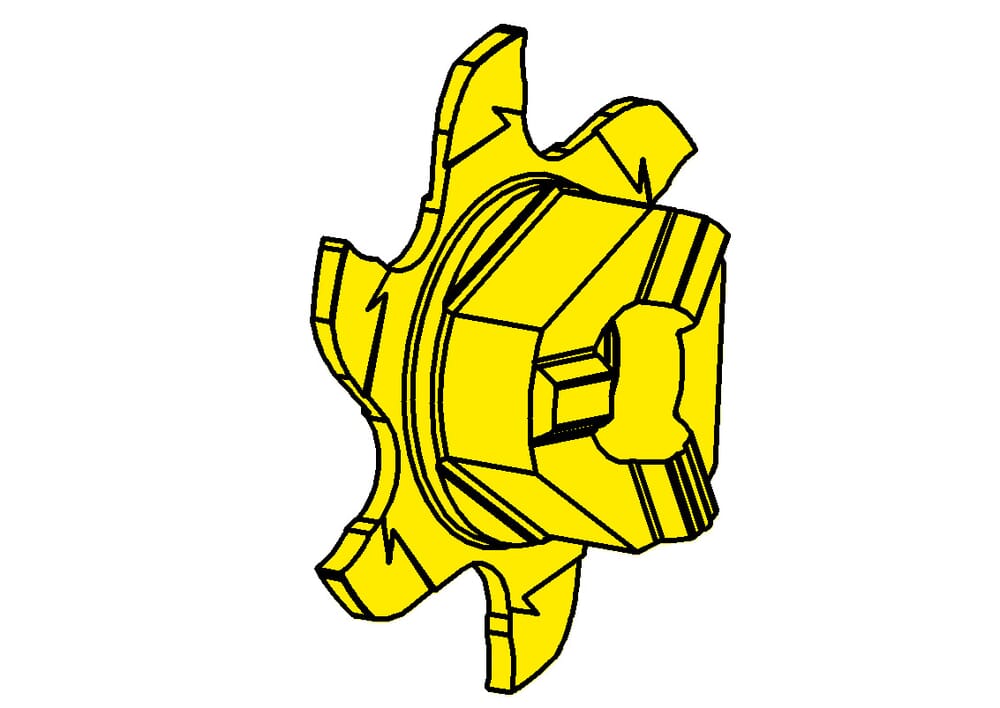

HORN Insert 613.0100.1.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
| Downloads | |
|---|---|
| 613_0100_1_00_TI25-DXF.DXF | Download |
| 613_0100_1_00_TI25-ISO.XML | Download |
| 613_0100_1_00_TI25-STP.STP | Download |
| 613_0100_1_00_TI25-DIN.XML | Download |
| Download all files | |
