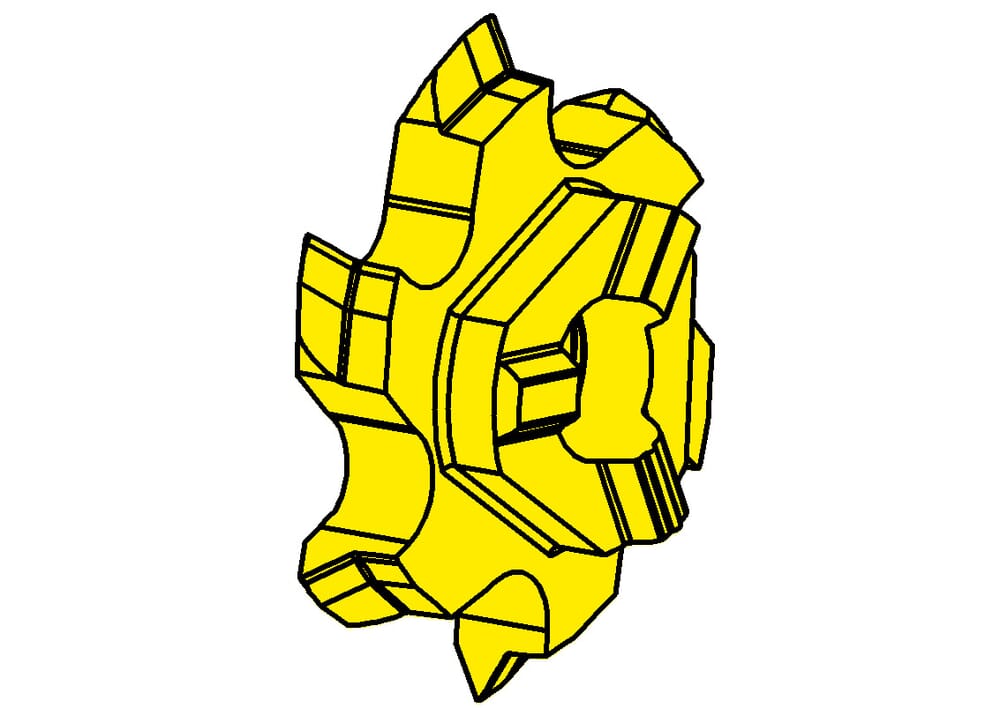

613.0720.01 TI25
Inserts
Part number 613072001TI25
HORN Inserts 613.0720.01 TI25 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
4.6
mm
Cutting insert height, Cutting insert thickness (s)
5.6
mm
Pitch (P)
1
mm
Maximum pitch (Pmax)
2
mm
| Downloads | |
|---|---|
| 613_0720_01_TI25-ISO.XML | Download |
| 613_0720_01_TI25-DXF.DXF | Download |
| 613_0720_01_TI25-STP.STP | Download |
| 613_0720_01_TI25-DIN.XML | Download |
| Download all files | |
