613.1515.20 TA45

Insert

Part number 613151520TA45

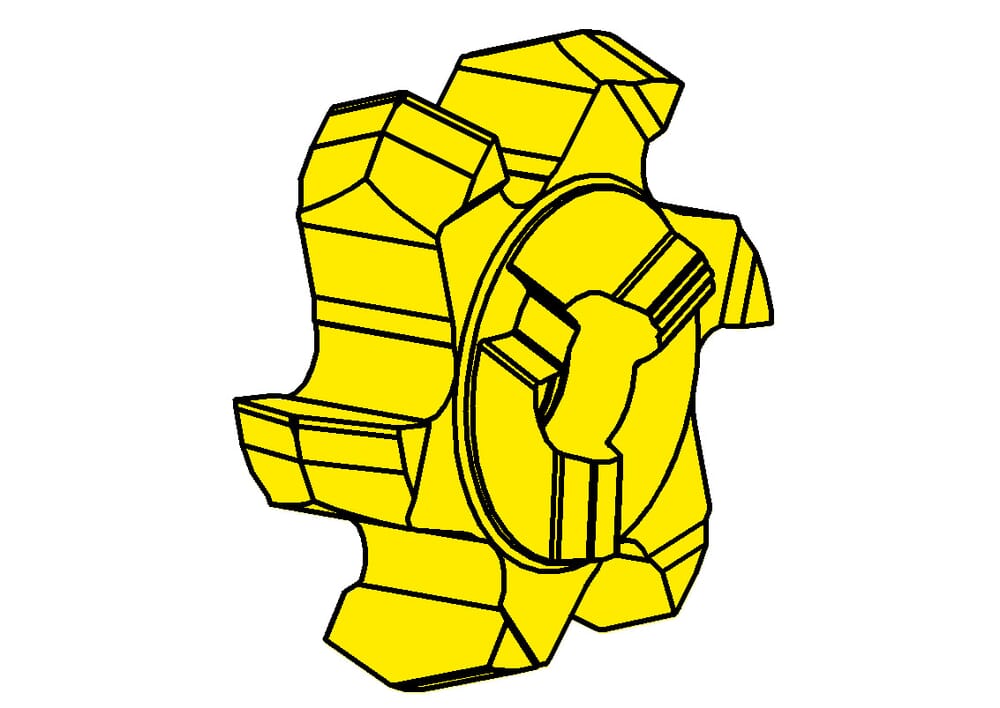

HORN Insert 613.1515.20 TA45 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Setting length (E)

3.3 mm

Chamfer size (tmax)

0.75 mm

Angle of chamfer (α)

15 °

Chamfer with maximum (b)

2.7 mm
