613.2020.20 TA45
Insert
Part number 613202020TA45

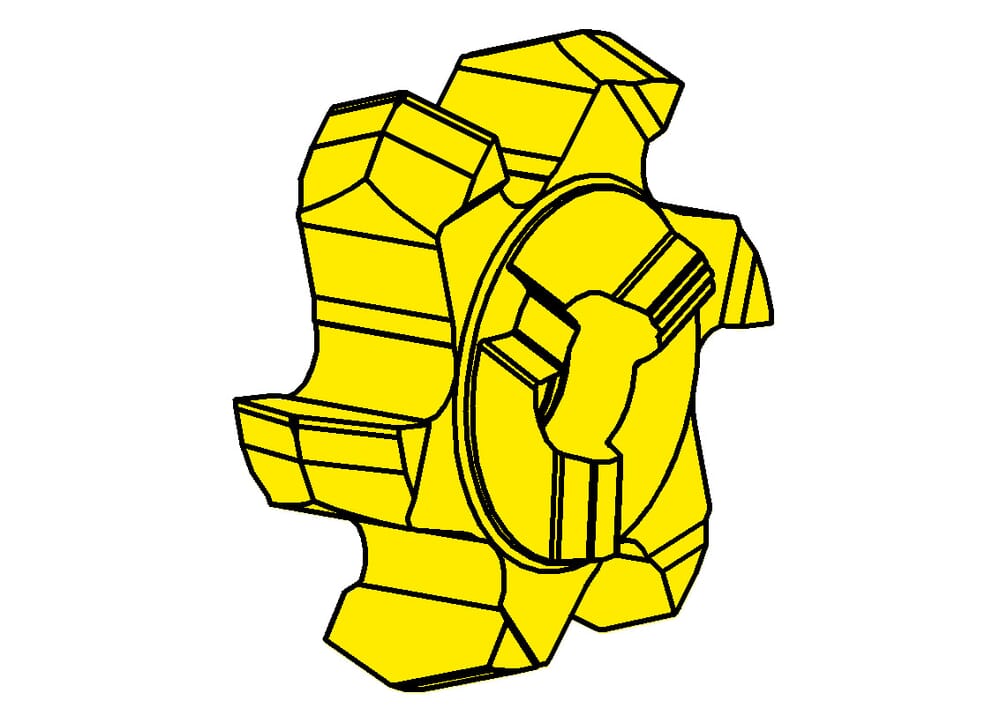

HORN Insert 613.2020.20 TA45 for Milling
Please note:Technical instructions
Katalog_SSC
313113R
eclass-shortcut
21-18-20-11
Chamfer with maximum (b)
2.7
mm
Angle of chamfer (α)
20
°
Chamfer size (tmax)
1
mm
Setting length (E)
3.3
mm
Cutting insert thickness, setting length complete (s)
6.3
mm
Width of groove (w)
0.2
mm
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 613202020_20210627_110132393.DXF | Download |
| 613202020_20230112_144004013.STP | Download |
| Download all files | |
