613.3030.20 TA45

Insert

Part number 613303020TA45

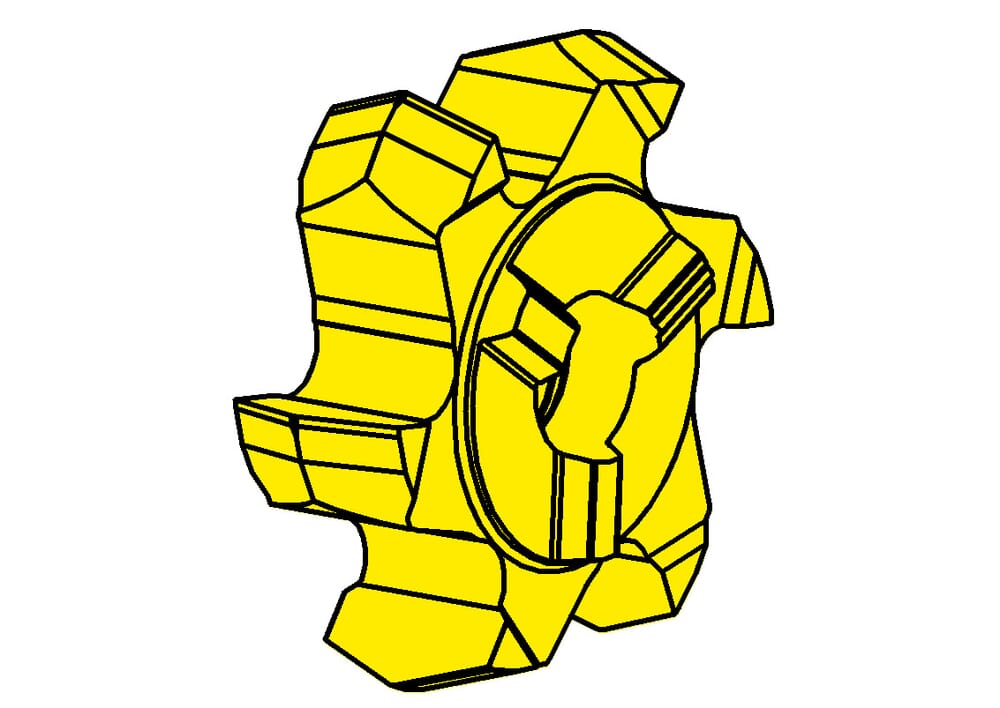

HORN Insert 613.3030.20 TA45 for Milling

Katalog_SSC

313113R

eclass-shortcut

21-18-20-11

Chamfer with maximum (b)

2.7 mm

Angle of chamfer (α)

30 °

Chamfer size (tmax)

1.6 mm

Setting length (E)

3.3 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Width of groove (w)

0.2 mm

DIN_SSC

HORN31311384R

ISO_SSC

HORN313113$84R$$$$$

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

21.7 mm
