613.3972.125.5 AS45
Insert
Part number 61339721255AS45

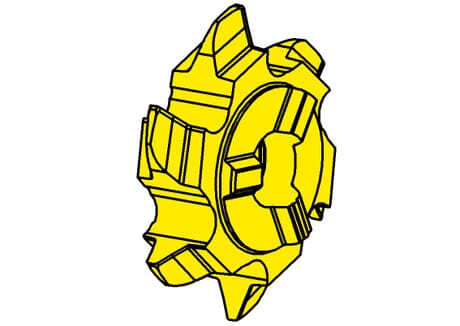

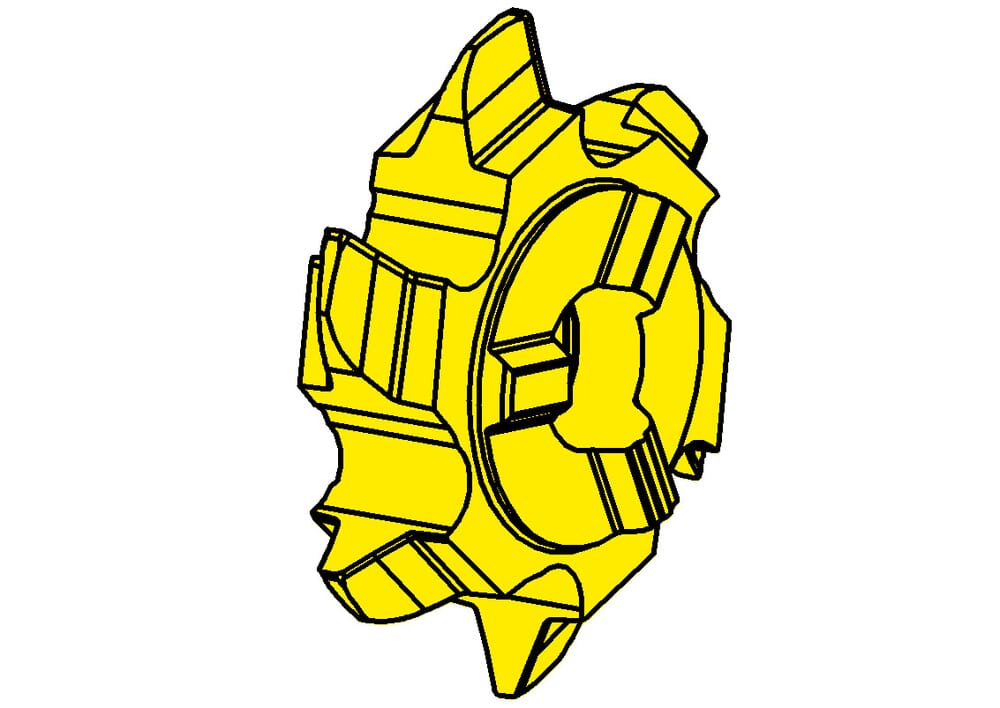

HORN Insert 613.3972.125.5 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7 mm
number-of-teeth
6 St.
Module (Modul)
1.25 mm
Number of teeth gear wheel minimum (zmin)
26 St.
Number of teeth gear wheel maximum (zmax)
34 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Maximum milling depth (tmax)
2.7 mm
Setting length (E1)
2.5 mm
Cutting insert height, Cutting insert thickness (s)
5.7 mm
| Downloads | |
|---|---|
| 613_3972_125_5_AS45-DXF.DXF | Download |
| 613_3972_125_5_AS45-ISO.XML | Download |
| 613_3972_125_5_AS45-STP.STP | Download |
| 613_3972_125_5_AS45-DIN.XML | Download |
| Download all files | |
