613.3972.125.7 AS45

Insert

Part number 61339721257AS45

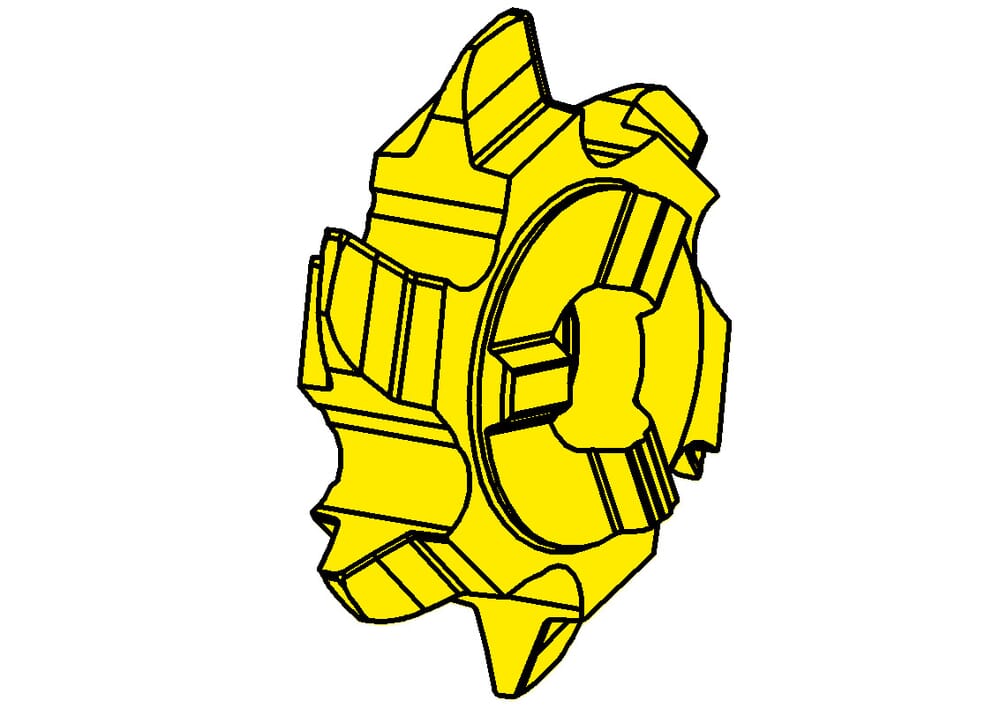

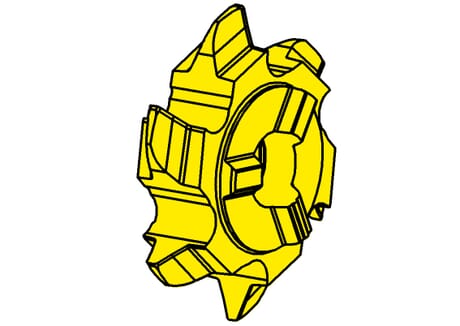

HORN Insert 613.3972.125.7 AS45 for Milling

eclass-shortcut

21-18-20-11

Cutting insert height, Cutting insert thickness (s)

5.7 mm

Setting length (E1)

2.5 mm

Maximum milling depth (tmax)

2.8 mm

Katalog_SSC

313113R

DIN_SSC

HORN31311384R

ISO_SSC

HORN313113$84R$$$$$

Number of teeth gear wheel maximum (zmax)

134 St.

Number of teeth gear wheel minimum (zmin)

55 St.

Module (Modul)

1.25 mm

number-of-teeth

6 St.

Cutting diameter (Ds)

21.7 mm
