613.3972.150.4 AS45
Insert
Part number 61339721504AS45

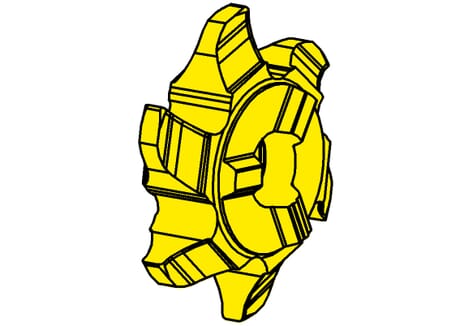

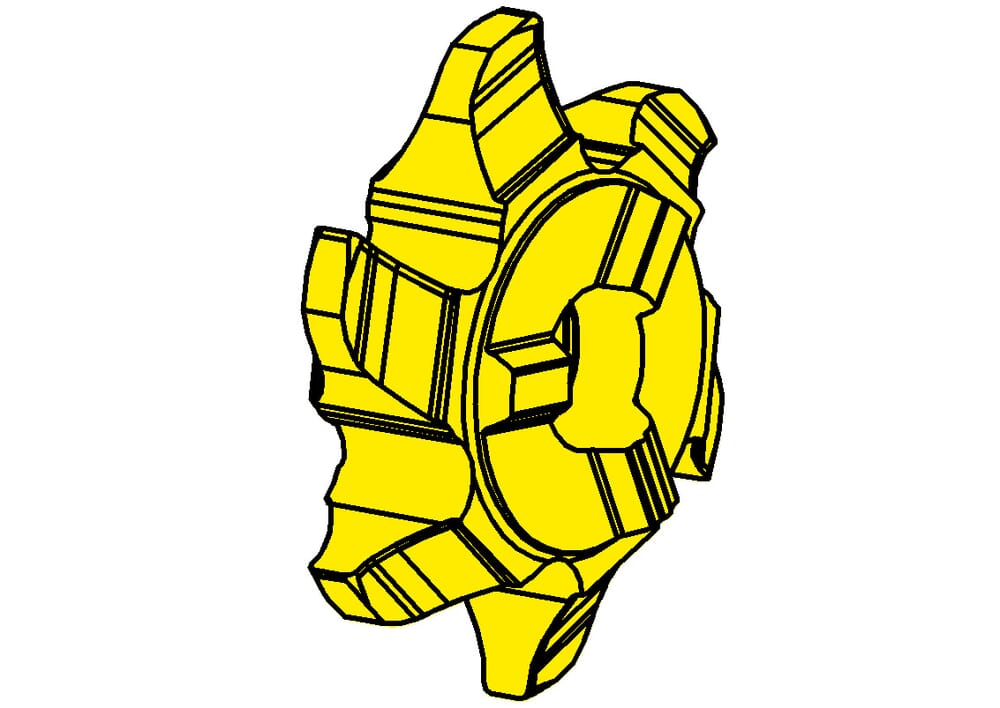

HORN Insert 613.3972.150.4 AS45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Cutting insert height, Cutting insert thickness (s)
5.7
mm
Setting length (E1)
2.5
mm
Maximum milling depth (tmax)
3.3
mm
Katalog_SSC
313113R
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
Number of teeth gear wheel maximum (zmax)
25
St.
Number of teeth gear wheel minimum (zmin)
21
St.
Module (Modul)
1.5
mm
number-of-teeth
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 61339721504.DXF | Download |
| Download all files | |
