613.3972.150.8 AS45

Insert

Part number 61339721508AS45

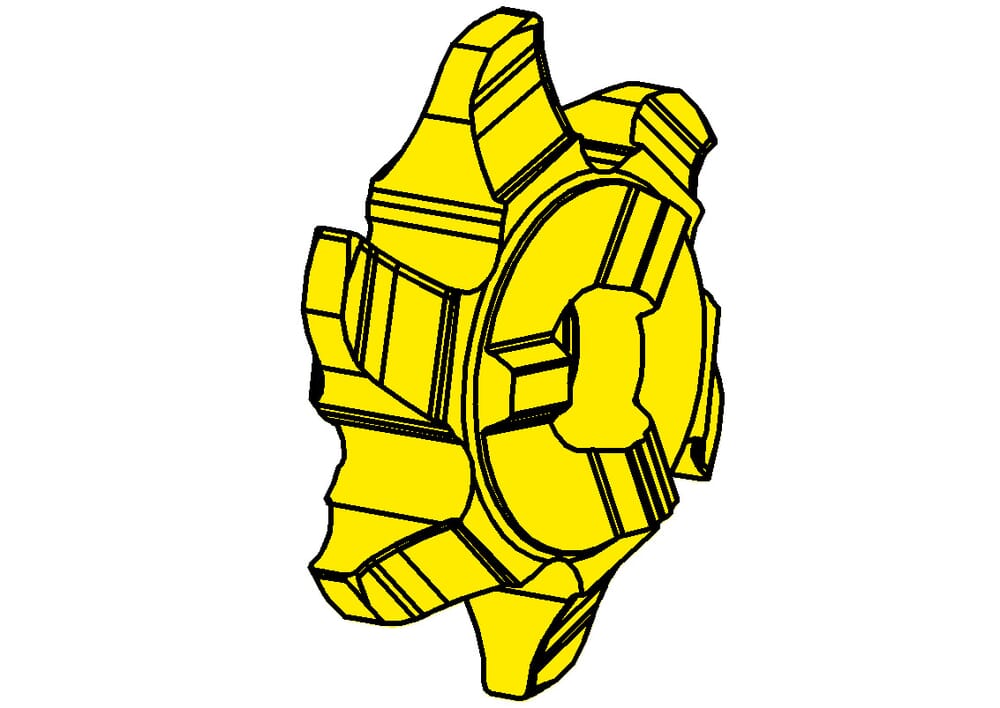

HORN Insert 613.3972.150.8 AS45 for Milling

Please note:Technical instructions

Cutting diameter (Ds)

21.7 mm

number-of-teeth

6 St.

Module (Modul)

1.5 mm

Number of teeth gear wheel minimum (zmin)

135 St.

Number of teeth gear wheel maximum (zmax)

999 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Maximum milling depth (tmax)

3.3 mm

Setting length (E1)

2.5 mm

Cutting insert height, Cutting insert thickness (s)

5.7 mm

Downloads
613_3972_150_8_AS45-DXF.DXF	Download
613_3972_150_8_AS45-ISO.XML	Download
613_3972_150_8_AS45-STP.STP	Download
613_3972_150_8_AS45-DIN.XML	Download
Download all files
